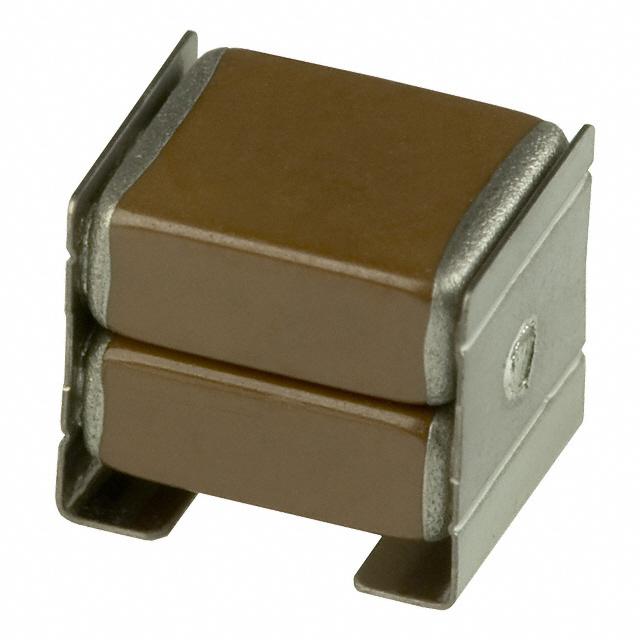

CKG57NX7T2J105M500JH TDK Corporation
Same model may have multiple batches, images only for reference.

CKG57NX7T2J105M500JH

Part No CKG57NX7T2J105M500JH
Manufacturer TDK Corporation
Catalog Ceramic Capacitors
Description Multilayer Ceramic Chip Capacitors
Datasheet
CKG57NX7T2J105M500JH Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer TDK Corporation
Series MEGACAP, CKG
Packaging Reel - TR
Capacitance 1μF
Tolerance ±20%
Voltage Rating DC 630V
Temperature Coefficient X7T
Operating Temperature Range -55°C ~ 125°C
Features Low ESL (Stacked)
Applications SMPS Filtering, Bypass, Decoupling
Mounting Surface Mount, MLCC
Package Stacked SMD, 2 J-Lead
Size 0.236" L x 0.197" W (6.00mm x 5.00mm)
Thickness (Maximum) 0.217" (5.50mm)
Lead Style J-Lead
Manufacturer Homepage www.tdk.com
Win Source Part Number 722968-CKG57NX7T2J105M500JH
Popularity Medium
Supply and Demand Status Limited
Family Name CKG57
Introduction Date May 26, 2013
ECCN EAR99
Country of Origin United States of America
Halogen Free Compliant
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian CKG57NX7T2J105M500JH CAD Model

Description

The TDK Corporation MEGACAP, CKG series stacked SMD, 2 J-Lead capacitor is a surface mount, MLCC type capacitor that has a capacitance of 1μF and a voltage rating DC of 630V.

  • Applications: SMPS filtering, bypass, and decoupling.
  • Feature: low ESL (Stacked)
  • Tolerance: ±20%
  • Temperature Coefficient: X7T
  • Package Size: 0.236" L x 0.197" W (6.00mm x 5.00mm)
  • Thickness (Maximum): 0.217" (5.50mm)
  • Series: TDK Corporation CKG57 series
  • Halogen-Free Compliant: Yes
  • Estimated EOL Date: 2026
  • Supply and demand status: limited.
