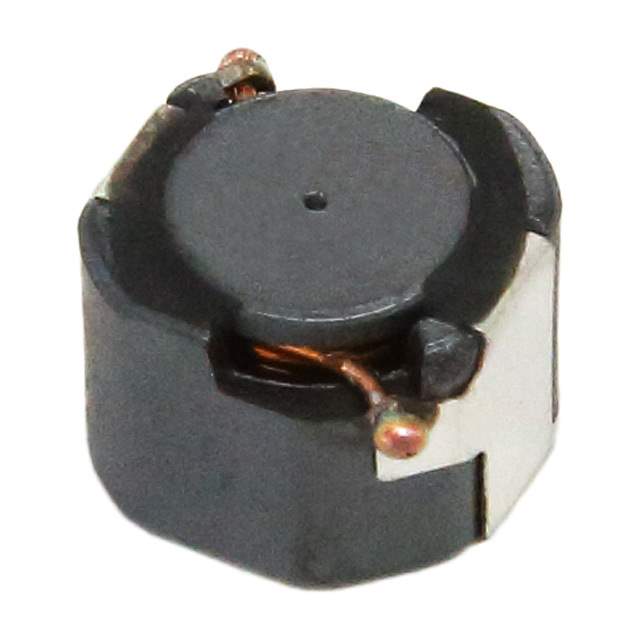

CLF6045T-100M Real Image
Same model may have multiple batches, images only for reference.

CLF6045T-100M

Part No CLF6045T-100M
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 10UH 2.4A 45.6MOHM SMD / 10 µH Shielded Drum Core, Wirewound Inductor 2.4 A 45.6mOhm Max Nonstandard
Datasheet
CLF6045T-100M Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Manufacturer TDK Corporation
Packaging Reel - TR
Product Status Obsolete
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 10 µH
Tolerance ±20%
Current Rating (Amps) 2.4 A
Current - Saturation (Isat) 1.7A
Shielding Shielded
DC Resistance (DCR) 45.6mOhm Max
Temperature Range - Operating -40°C ~ 105°C
Inductance Frequency - Test 100 kHz
Mounting Surface Mount
Case / Package Nonstandard
Size / Dimension 0.244" L x 0.232" W (6.20mm x 5.90mm)
Height - Seated (Max) 0.189" (4.80mm)
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Other Part Number 445-15092-1,445-15092-2,445-15092-6
Standard Package 1,000
Win Source Part Number 1327690-CLF6045T-100M
Ultra Librarian 3D Model Ultra Librarian CLF6045T-100M CAD Model

Description

The CLF6045T-100M is a fixed inductor component manufactured by TDK Corporation.

  • Inductance: 10 µH
  • Tolerance: ±20%
  • DC Resistance (DCR): 45.6mOhm
  • Current Rating: 2.4 A
  • Core Type: Drum core, wirewound
  • Shielding: Shielded
  • Case/Package: Nonstandard
  • REACH: Unaffected
  • ECCN: EAR99
  • MSL: 1 (unlimited)
