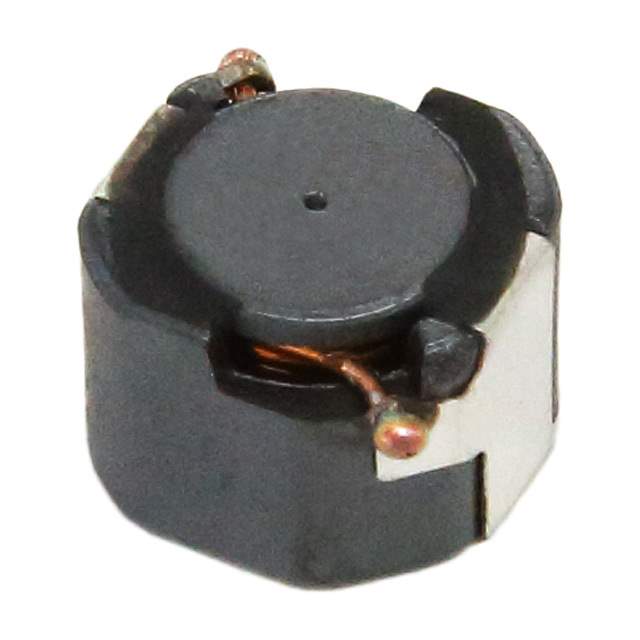

The CLF6045T-6R8N-D is a fixed inductor manufactured by TDK Corporation. It is designed for use in power supply circuits and other applications requiring efficient energy storage and filtering. This inductor offers a compact size while maintaining high performance and reliability.

Applications


• DC-DC converters

• Power supplies for various electronic devices

• Filtering circuits

• Energy storage in portable devices

• Step-up/Step-down converters

Features


• Shielded construction for reduced EMI

• High current carrying capacity

• Low DC resistance (DCR) for improved efficiency

• Compact size: 6.0 x 6.0 x 4.5 mm

• Operating temperature range: -40°C to +125°C

• Inductance: 6.8 µH

• Tolerance: ±30%

• RoHS compliant

Benefits


• Reduced electromagnetic interference (EMI) allows for cleaner signal integrity and improved system performance.

• High current capacity ensures stable operation in demanding applications.

• Low DCR minimizes power loss, leading to higher energy efficiency and reduced heat generation.

• Compact size allows for use in space-constrained applications.

• Wide operating temperature range ensures reliable performance in various environmental conditions.

Additional Details

The CLF6045T series inductors are known for their robust construction and consistent performance. The shielded design minimizes electromagnetic interference, making them suitable for sensitive electronic circuits. The 6.8 µH inductance value is ideal for a wide range of power supply applications, and the ±30% tolerance provides sufficient flexibility for circuit design. The inductor is designed for surface mounting and is compatible with standard reflow soldering processes. The part is lead-free and RoHS compliant, meeting environmental regulations.

Technical Specifications:

• Inductance: 6.8 µH
• Tolerance: ±30%
• Saturation Current: 1.7A
• Rated Current: 1.5A
• DC Resistance (DCR): 0.15Ω
• Shielded: Yes
• Package Size: 6.0 x 6.0 x 4.5 mm
