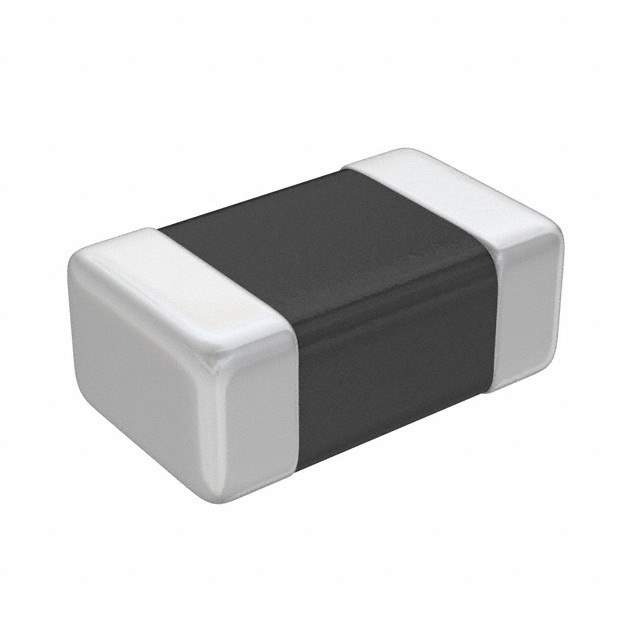

CPL2510T2R2M Real Image
Same model may have multiple batches, images only for reference.

CPL2510T2R2M

Part No CPL2510T2R2M
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 2.2UH 800MA 135 MOHM / Inductor Power Shielded Wirewound 2.2uH 20% 1MHz Ferrite 0.8A 0.1755Ohm DCR 1006 T/R
Datasheet
CPL2510T2R2M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer TDK Corporation
Series CPL
Packaging Reel package
Part Status Obsolete(EOL)
Type Wirewound
Material - Core Ferrite
Inductance 2.2μH
Tolerance ±20%
Current Rating 800mA
Current - Saturation 800mA
Shielding Shielded
DC Resistance (DCR) 175.5 mOhm Max
Operating Temperature Range -40°C ~ 105°C
Mounting SMD
Package Nonstandard
Dimension 0.098" L x 0.059" W (2.50mm x 1.50mm)
Height - Seated (Maximum) 0.039" (1.00mm)
Win Source Part Number 771742-CPL2510T2R2M
Popularity Medium
Supply and Demand Status Balance
Family Name CPL
Introduction Date July 04, 2001
ECCN EAR99
Country of Origin United States of America
Halogen Free Compliant
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian CPL2510T2R2M CAD Model

Description

The TDK Corporation 771742-CPL2510T2R2M is a wirewound inductor that is designed to provide superior performance. It has a current rating of 800mA and an inductance of 2.2μH, making it suitable for a wide range of applications.

  • Shielded: Yes
  • Mounting: SMD
  • Tolerance: ±20%
  • Current Saturation: 800mA
  • Category: Inductors, Coils, Chokes
  • DC Resistance (DCR): 175.5 mOhm Max
  • Dimension: 0.098" L x 0.059" W (2.50mm x 1.50mm)
  • Height Seated: 0.039" (1.00mm)
