Same model may have multiple batches, images only for reference.

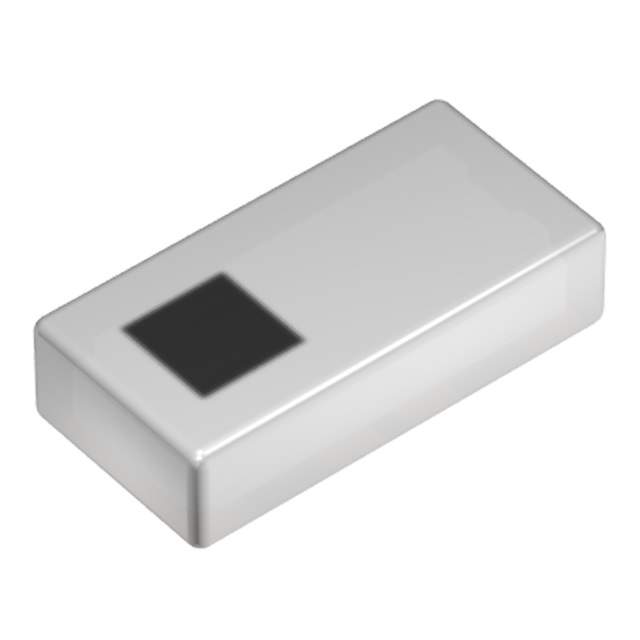

DEA160960LT-5059A1 Real Image
Same model may have multiple batches, images only for reference.

DEA160960LT-5059A1

Part No DEA160960LT-5059A1
Manufacturer TDK Corporation
Catalog RF Filters
Description RF FILTER LOW PASS 829MHZ 0603
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Estimated Pruduction Lead Time 11 Weeks
Features 829MHz Center Frequency Low Pass RF Filter (Radio Frequency) 262MHz Bandwidth 0.35dB 0603 (1608 Metric), 4 PC Pad
Manufacturer TDK Corporation
Series DEA
Package Reel - TR
Mounting Surface Mount
Package 0603 (1608 Metric), 4 PC Pad
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8548.90.0100
Other Part Number 445-181435-6, 445-181435-1, 445-181435-2
Quantity per package 4000
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 868324-DEA160960LT-5059A1
Ultra Librarian 3D Model Ultra Librarian DEA160960LT-5059A1 CAD Model

Description

The DEA160960LT-5059A1 is an electronic component manufactured by TDK Corporation.

  • Series: DEA
  • Popularity: Medium
  • Supply and Demand Status: Limited
  • Filter Type: Low pass RF filter
  • Center Frequency: 829MHz
  • Bandwidth: 262MHz
  • Loss: 0.35dB
  • Package: 0603 (1608 Metric), 4 PC Pad
  • Mounting: Surface mountable
  • Package Type: Reel-TR
  • Estimated Production Lead Time: 11 weeks
  • Category: Filters
  • Alternative Part Numbers: 445-181435-6, 445-181435-1, 445-181435-2
