Same model may have multiple batches, images only for reference.

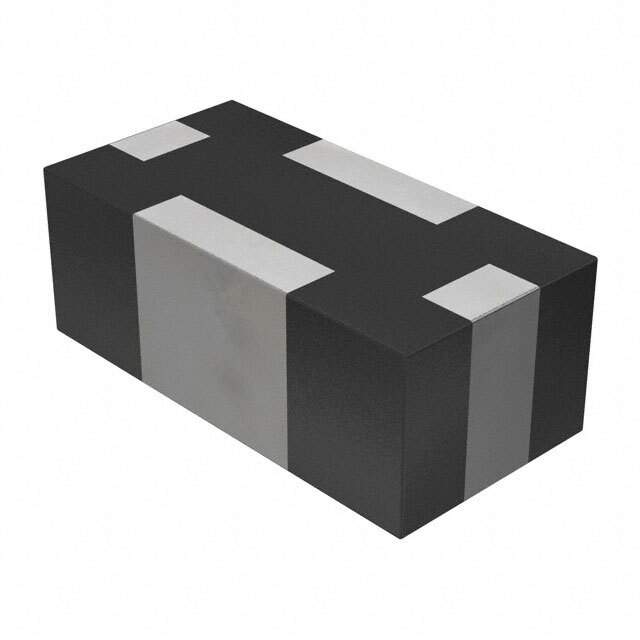

DEA162450BT-1271A3 Real Image
Same model may have multiple batches, images only for reference.

DEA162450BT-1271A3

Part No DEA162450BT-1271A3
Manufacturer TDK Corporation
Catalog RF Filters
Description RF FILTER BAND PASS 2.45GHZ 0603
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Estimated Pruduction Lead Time 9 Weeks
Features 2.45GHz Center Frequency Band Pass RF Filter (Radio Frequency) Bandwidth 1.96dB 0603 (1608 Metric), 4 PC Pad
Manufacturer TDK Corporation
Series DEA
Package Reel - TR
Mounting Surface Mount
Package 0603 (1608 Metric), 4 PC Pad
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8548.90.0100
Other Part Number 445-15638-1, 445-15638-2, 445-15638-6
Quantity per package 4000
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 868325-DEA162450BT-1271A3
Ultra Librarian 3D Model Ultra Librarian DEA162450BT-1271A3 CAD Model

Description

The TDK Corporation DEA162450BT-1271A3 is a 2.45GHz center frequency band pass RF filter that is part of the DEA series.

  • Popularity Rating: Medium
  • Supply and Demand Status: Limited
  • Package: 0603 (1608 Metric), 4 PC Pad
  • Mounting: Surface mount
  • Quantity per Package: 4000
  • ECCN: EAR99 compliant
  • MSL Level: 1 (Unlimited)
  • Estimated Production Lead Time: 9 weeks
