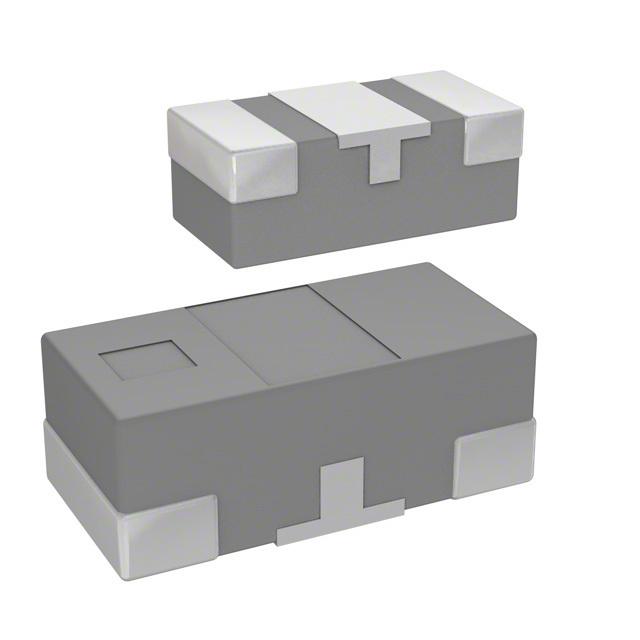

DEA162450BT-2092A1-H

Part No DEA162450BT-2092A1-H
Manufacturer TDK Corporation
Catalog RF Filters
Description RF FILTER BAND PASS 2.45GHZ 0603 / 2.45GHz Center Frequency Band Pass RF Filter (Radio Frequency) Bandwidth 2.74dB 0603 (1608 Metric), 3 PC Pad
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters - RF Filters
Mfr TDK Corporation
Series DEA
Package Tape & Reel
Product Status Obsolete
Frequency 2.45GHz Center
Filter Type Band Pass
Insertion Loss 2.74dB
Mounting Type Surface Mount
Package / Case 0603 (1608 Metric), 3 PC Pad
Size / Dimension 0.063" L x 0.032" W (1.60mm x 0.80mm)
Height (Max) 0.024" (0.60mm)
Standard Package 4,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 107506-DEA162450BT-2092A1-H
Ultra Librarian 3D Model Ultra Librarian DEA162450BT-2092A1-H CAD Model

Description

Product Overview

The DEA162450BT-2092A1-H component is designed for applications requiring high precision and reliability. Its adaptable nature ensures it meets the evolving demands of technology-driven environments.

Features and Benefits

  • High Precision Output: Guarantees exact performance for critical applications.
  • Enhanced Durability: Engineered for long-term use in demanding conditions.
  • Easy Integration: Simplifies the incorporation into existing systems.

Applications

  • Automotive Electronics
  • Data Communication Systems
  • Medical Devices
  • Environmental Monitoring Systems

This component's precision and durability make it a preferred choice for manufacturers seeking advanced solutions.
