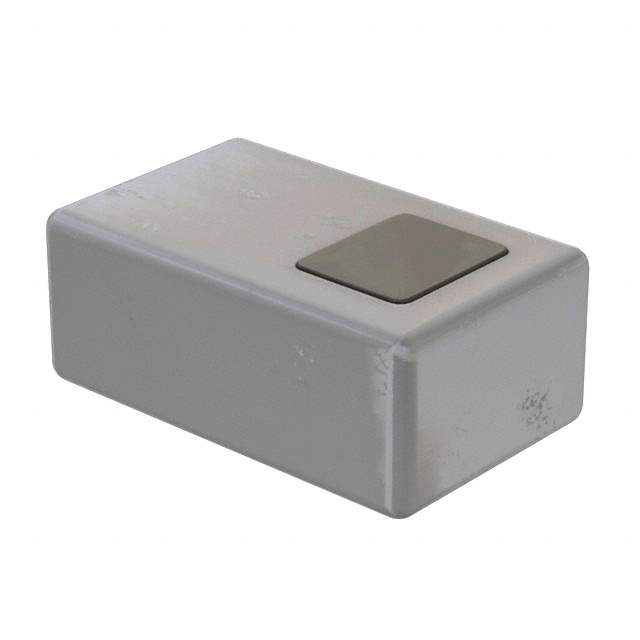

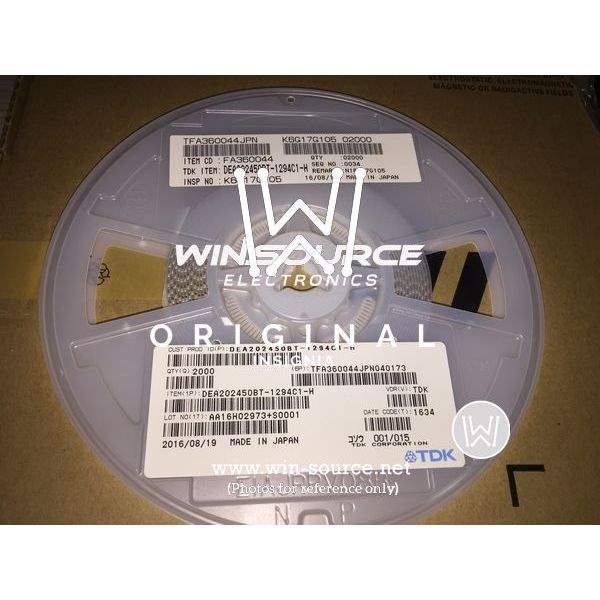

DEA202450BT-1294C1-H TDK Corporation DEA202450BT-1294C1-H Real Image DEA202450BT-1294C1-H label picture 2 DEA202450BT-1294C1-H label picture 3
Same model may have multiple batches, images only for reference.
DEA202450BT-1294C1-H TDK Corporation DEA202450BT-1294C1-H Real Image DEA202450BT-1294C1-H label picture 2 DEA202450BT-1294C1-H label picture 3
DEA202450BT-1294C1-H TDK Corporation DEA202450BT-1294C1-H Real Image DEA202450BT-1294C1-H label picture 2 DEA202450BT-1294C1-H label picture 3
Same model may have multiple batches, images only for reference.

DEA202450BT-1294C1-H

Part No DEA202450BT-1294C1-H
Manufacturer TDK Corporation
Catalog RF Filters
Description FILTER BANDPASS WLAN&BLUETOOTH
Datasheet
DEA202450BT-1294C1-H Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer TDK Corporation
Packaging Reel - TR
Status Active
Frequency 2.45GHz Center
Bandwidth 72MHz
Filter Type Band Pass
Insertion Loss 1.35dB
Mounting SMD (SMT)
Dimension 0.079" L x 0.053" W (2.00mm x 1.35mm)
Height (Max) 0.032" (0.80mm)
Win Source Part Number 091783-DEA202450BT-1294C1-H
Family Name DEA
ECCN EAR99
Country of Origin United States of America
Halogen Free Compliant
Estimated EOL Date 2024
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian DEA202450BT-1294C1-H CAD Model

Description

DEA202450BT-1294C1-H

The DEA202450BT-1294C1-H is a high-performance electronic component designed to deliver superior functionality in various electronic applications. Its compact form factor and robust construction make it an ideal choice for modern devices.

  • Mobile Communication Systems
  • Consumer Electronics
  • Automotive Electronics

Features and Benefits

  • High reliability and performance
  • Compact design for easy integration
  • Exceptional signal integrity

This component is engineered to meet the rigorous demands of today's technological advancements, ensuring long-lasting and efficient performance.
