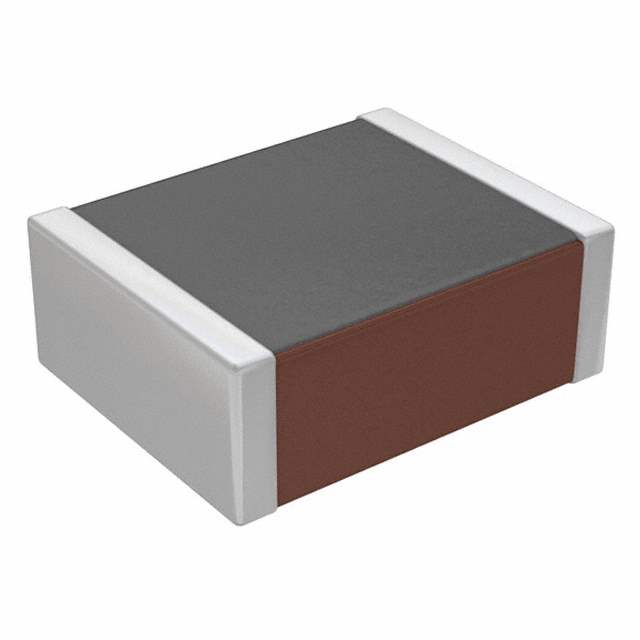

HF30ACB453215-T Real Image
Same model may have multiple batches, images only for reference.

HF30ACB453215-T

Part No HF30ACB453215-T
Manufacturer TDK Corporation
Catalog Ferrite Beads and Chips
Description FERRITE BEAD 70 OHM 1812 1LN
Datasheet
HF30ACB453215-T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer TDK Corporation
Packaging Reel - TR
Status Active
Filter Type Signal Line
Number of Lines 1
Impedance @ Frequency 70 Ohm @ 100MHz
Current Rating (Max) 300mA
DC Resistance (DCR) (Max) 400 mOhm
Temperature Range - Operating -40°C to 125°C
Mounting SMD (SMT)
Height (Max) 0.069" (1.75mm)
Dimension 0.177" L x 0.126" W (4.50mm x 3.20mm)
Win Source Part Number 016926-HF30ACB453215-T
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian HF30ACB453215-T CAD Model

Description

The TDK Corporation HF30ACB453215-T is a signal line filter designed for SMD (SMT) mounting.

  • Maximum Current Rating: 300mA
  • DC Resistance (DCR): 400 mOhm
  • Impedance: 70 Ohm @ 100MHz
  • Height: 0.069" (1.75mm)
  • Dimension: 0.177" L x 0.126" W (4.50mm x 3.20mm)
  • Temperature Range: -40°C to 125°C
  • Status: Active
