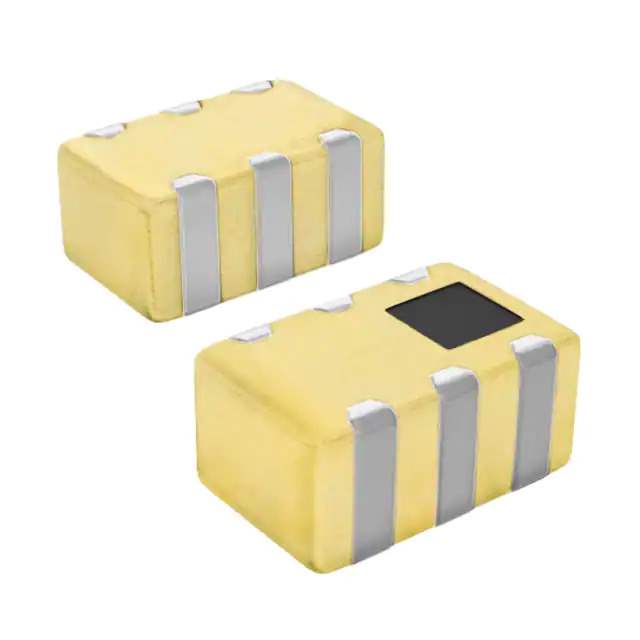

HHM1596A1 Real Image
Same model may have multiple batches, images only for reference.

HHM1596A1

Part No HHM1596A1
Manufacturer TDK Corporation
Catalog Balun
Description BALUN 3.1GHZ-4.9GHZ 50/100 0805 / RF Balun 3.1GHz ~ 4.9GHz 50 / 100Ohm 0805 (2012 Metric)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF and Wireless - Balun
Mfr TDK Corporation
Series HHM
Package Tape & Reel
Product Status Active
Frequency Range 3.1GHz ~ 4.9GHz
Impedance - Unbalanced/Balanced 50 / 100Ohm
Phase Difference 180° ±15°
Insertion Loss (Max) 1.0dB
Return Loss (Min) 10dB
Package / Case 0805 (2012 Metric)
Mounting Type Surface Mount
Standard Package 2,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.31.2000
Win Source Part Number 873546-HHM1596A1
Ultra Librarian 3D Model Ultra Librarian HHM1596A1 CAD Model

Description

The HHM series balun is designed for RF and wireless applications in the frequency range of 3.1GHz to 4.9GHz. It features an impedance of 50/100Ohm (unbalanced/balanced) and a phase difference of 180° ±15°, making it suitable for balanced transmission systems.

  • Application: RF and wireless
  • Frequency Range: 3.1GHz to 4.9GHz
  • Impedance: 50/100Ohm (unbalanced/balanced)
  • Phase Difference: 180° ±15°
  • Insertion Loss (Max): 1.0dB
  • Return Loss (Min): 10dB
  • Mounting Type: surface mount
  • Package: 0805 (2012 Metric)
  • Package Size: tape and reel package of 2,000 pcs
  • Series: HHM
  • ECCN: EAR99
  • Manufacturer: TDK Corporation
