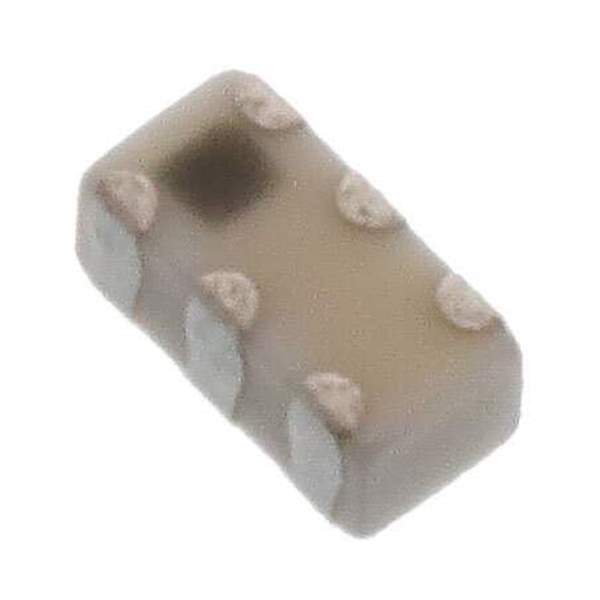

HHM17147A1 Real Image
Same model may have multiple batches, images only for reference.

HHM17147A1

Part No HHM17147A1
Manufacturer TDK Corporation
Catalog Balun
Description MULTILYER BALUN FOR 673-2700MHZ
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer TDK Corporation
Packaging Reel
Frequency Range 673MHz ~ 2.7GHz
Impedance - Unbalanced/Balanced 50 / 100Ohm
Phase Difference 190°
Insertion Loss (Maximum) 2.5dB
Return Loss (Minimum) 8dB
Manufacturer Package 0603 (1608 Metric), 6 PC Pad
Mounting Style SMT
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 710298-HHM17147A1
Popularity Low
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian HHM17147A1 CAD Model

Description

The TDK Corporation HHM17147A1 is a fixed inductor that is designed for use in RF/IF and RFID applications.

  • Frequency Range: 673MHz to 2.7GHz
  • Impedance: 50 / 100Ohm
  • Package: 0603 (1608 Metric), 6 PC Pad
  • Mounting: SMT technology
  • Insertion Loss: 2.5dB
  • Return Loss: 8dB
  • Popularity: not very popular, but it is a reliable choice for RF/IF and RFID applications
