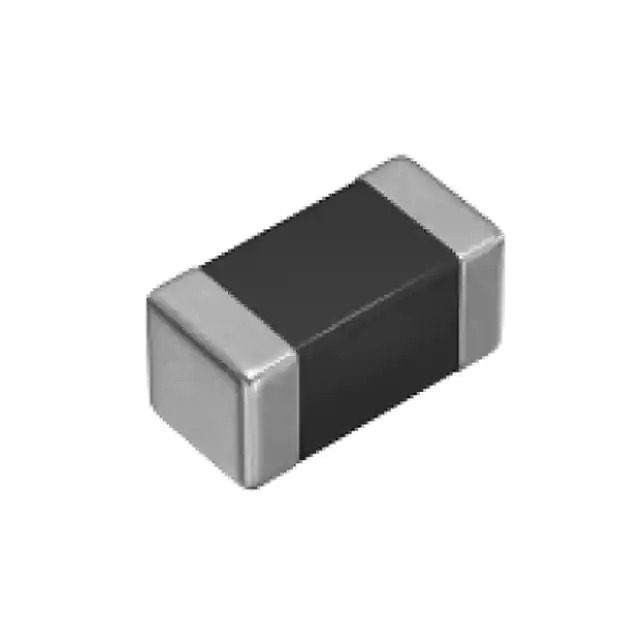

KMZ1608YHR601BTD25 TDK Corporation
Same model may have multiple batches, images only for reference.

KMZ1608YHR601BTD25

Part No KMZ1608YHR601BTD25
Manufacturer TDK Corporation
Catalog Ferrite Beads and Chips
Description FERRITE BEAD 600 OHM 0603 1LN
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters - Ferrite Beads and Chips
Mfr TDK Corporation
Series KMZ-HR
Package Tape & Reel
Product Status Active
Filter Type Signal Line
Number of Lines 1
Impedance @ Frequency 600 Ohms @ 100 MHz
Current Rating (Max) 500mA
DC Resistance (DCR) (Max) 400mOhm
Ratings AEC-Q200
Temperature Range - Operating -55°C ~ 150°C
Package / Case 0603 (1608 Metric)
Mounting Type Surface Mount
Height (Max) 0.037" (0.95mm)
Size / Dimension 0.063" L x 0.032" W (1.60mm x 0.80mm)
Features Soft Termination
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1369094-KMZ1608YHR601BTD25
Ultra Librarian 3D Model Ultra Librarian KMZ1608YHR601BTD25 CAD Model

Description

The KMZ1608YHR601BTD25 is a ferrite bead and chip filter from TDK Corporation's KMZ-HR series.

  • Function: Signal Line
  • Impedance: 600 Ohms @ 100 MHz
  • Package Size: 0603 (1608 Metric)
  • Mounting Type: Surface Mount
  • Height: 0.037" (0.95mm)
  • Rating: AEC-Q200
  • Status: Active
