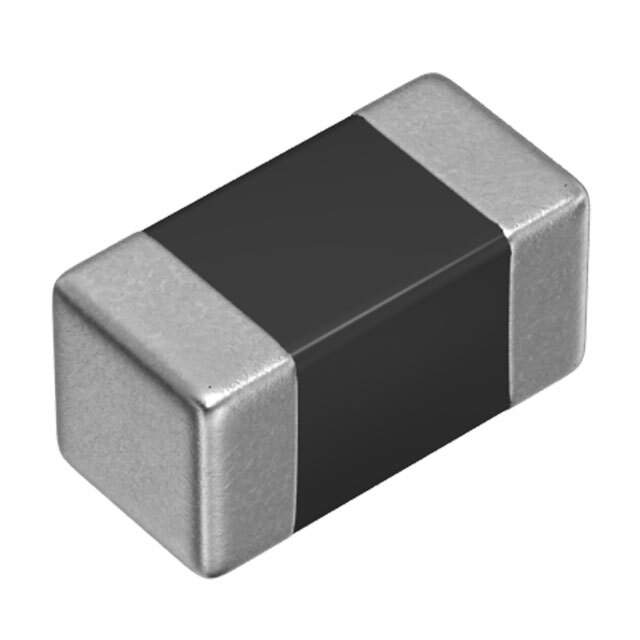

MLF1005GR82KT000 Real Image
Same model may have multiple batches, images only for reference.

MLF1005GR82KT000

Part No MLF1005GR82KT000
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 820NH 40MA 590MOHM SMD / 820 nH Shielded Multilayer Inductor 40 mA 590mOhm Max 0402 (1005 Metric)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr TDK Corporation
Series MLF
Package Tape & Reel
Type Multilayer
Material - Core Ferrite
Inductance 820 nH
Tolerance ±10%
Current Rating (Amps) 40 mA
Shielding Shielded
DC Resistance (DCR) 590mOhm Max
Q @ Freq 30 @ 10MHz
Frequency - Self Resonant 130MHz
Temperature Range - Operating -40°C ~ 85°C
Inductance Frequency - Test 10 MHz
Mounting SMD (SMT)
Package / Case 0402 (1005 Metric)
Supplier Device Package 0402 (1005 Metric)
Dimension 0.039" L x 0.020" W (1.00mm x 0.50mm)
Height - Seated (Max) 0.022" (0.55mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Other Names 445-15699-6,445-15699-2,445-15699-1,MLF1005GR82K
Standard Package 10,000
Win Source Part Number 966170-MLF1005GR82KT000
Ultra Librarian 3D Model Ultra Librarian MLF1005GR82KT000 CAD Model

Description

The fixed inductor MLF1005GR82KT000 from TDK Corporation is a multilayer inductor with a shielding of 820nH and a tolerance of ±10%.

  • Temperature Range: -40°C to 85°C
  • Package: tape & reel
  • Core Material: ferrite
  • Q @ Freq: 30 @ 10MHz
  • Frequency Self-Resonant: 130MHz
  • DC Resistance (DCR): 590mOhm Max
  • Mounting Type: SMD (SMT)
  • Dimension: 0.039" L x 0.020" W (1.00mm x 0.50mm)
  • MSL Level: 1 (unlimited)
  • HTSUS: 8504.50.8000
  • REACH: REACH unaffected
  • Alternative Parts: LK1005R82K-T, LK2125R82K-T, CM322522-R82KL, and LQM18NNR82K00D
