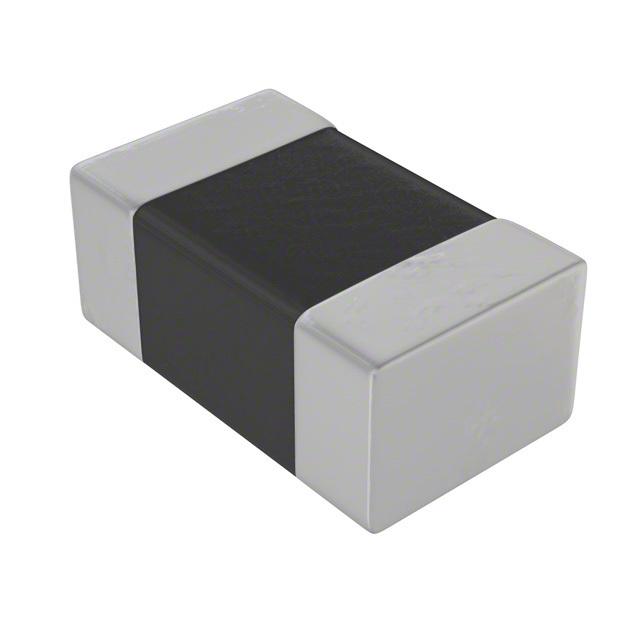

Same model may have multiple batches, images only for reference.
MLF2012A4R7M TDK Corporation
Same model may have multiple batches, images only for reference.

MLF2012A4R7M

Part No MLF2012A4R7M
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 4.7UH 30MA 700 MOHM
Datasheet
MLF2012A4R7M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer TDK Corporation
Packaging Reel - TR
Status Active
Type Multilayer
Material - Core Ferrite
Inductance 4.7μH
Tolerance ±20%
Current Rating 30mA
DC Resistance (DCR) 700 mOhm Max
Q @ Freq 45 @ 10MHz
Frequency - Self Resonant 50MHz
Temperature Range - Operating -55°C to 125°C
Frequency - Test 10MHz
Mounting SMD (SMT)
Case / Package 0805 (2012 Metric)
Height - Seated (Max) 0.057" (1.45mm)
Win Source Part Number 058969-MLF2012A4R7M
Ultra Librarian 3D Model Ultra Librarian MLF2012A4R7M CAD Model

Description

The TDK MLF2012A4R7M is an inductor that falls under the category of inductors, coils, and chokes.

  • Current Rating: 30mA
  • Inductance: 4.7μH
  • Height: 0.057" (1.45mm)
  • Mounting: SMD (SMT) technology
  • Tolerance: ±20%
  • Core Material: Ferrite
  • Q @ Freq: 45 @ 10MHz
  • Self-Resonant Frequency: 50MHz
  • Test Frequency: 10MHz
  • DC Resistance: 700 mOhm Max
  • Status: Active
  • Temperature Range: -55°C to 125°C
  • Package: 0805 (2012 Metric)
