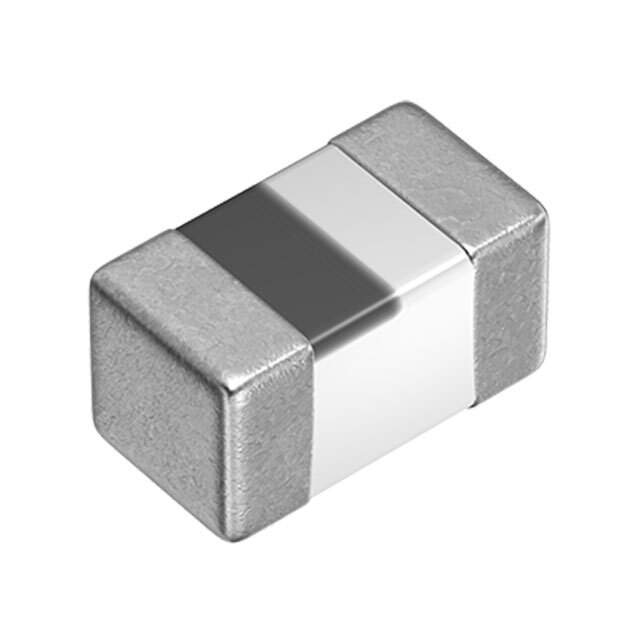

MLG0402P0N7BT000 Real Image
Same model may have multiple batches, images only for reference.

MLG0402P0N7BT000

Part No MLG0402P0N7BT000
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 0.7NH 320MA 300MOHM SM / 0.7 nH Unshielded Multilayer Inductor 320 mA 300mOhm Max 01005 (0402 Metric)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Manufacturer TDK Corporation
Packaging Reel - TR
Type Multilayer
Material - Core Non-Magnetic
Inductance 0.7 nH
Tolerance ±0.1nH
Current Rating (Amps) 320 mA
Shielding Unshielded
DC Resistance (DCR) 300mOhm Max
Frequency - Self Resonant 10GHz
Temperature Range - Operating -55°C ~ 125°C
Inductance Frequency - Test 500 MHz
Mounting Surface Mount
Case / Package 01005 (0402 Metric)
Supplier Device Package 01005 (0402 Metric)
Size / Dimension 0.016" L x 0.008" W (0.40mm x 0.20mm)
Height - Seated (Max) 0.009" (0.22mm)
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Standard Package 20,000
Win Source Part Number 1327813-MLG0402P0N7BT000
Ultra Librarian 3D Model Ultra Librarian MLG0402P0N7BT000 CAD Model

Description

TDK Corporation's 1327813-MLG0402P0N7BT000 is a fixed inductor.

  • Win Source Part Number: 1327813-MLG0402P0N7BT000
  • Category: Inductors, Coils, Chokes>Fixed Inductors
  • Size/Dimension: 0.016" L x 0.008" W (0.40mm x 0.20mm)
  • Inductance: 0.7 nH
  • Operating Temperature Range: -55°C ~ 125°C
