Same model may have multiple batches, images only for reference.

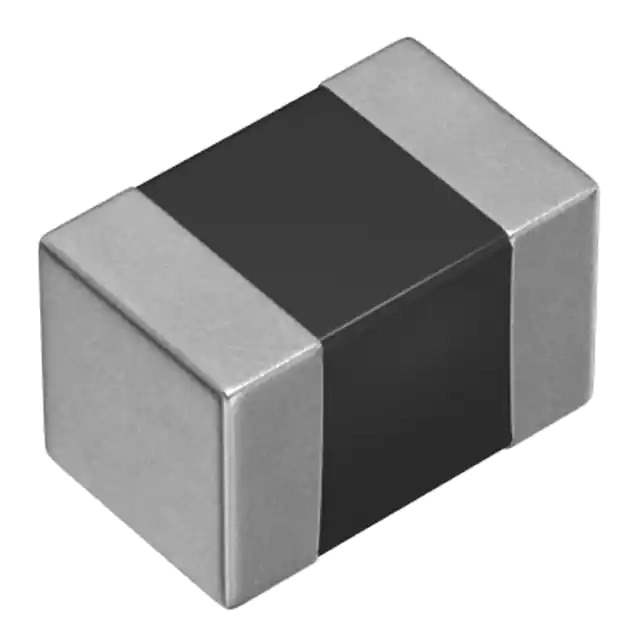

MLP2012V4R7MT0S1 Real Image
Same model may have multiple batches, images only for reference.

MLP2012V4R7MT0S1

Part No MLP2012V4R7MT0S1
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 4.7UH 600MA 520MOHM SM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr TDK Corporation
Series MLP
Package Tape & Reel
Product Status Active
Type Multilayer
Material - Core Ferrite
Inductance 4.7 µH
Tolerance ±20%
Current Rating (Amps) 600 mA
Shielding Shielded
DC Resistance (DCR) 520mOhm Max
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 2 MHz
Mounting Type Surface Mount
Package / Case 0805 (2012 Metric)
Supplier Device Package 0805 (2012 Metric)
Size / Dimension 0.079" L x 0.049" W (2.00mm x 1.25mm)
Height - Seated (Max) 0.039" (1.00mm)
Standard Package 4,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 747520-MLP2012V4R7MT0S1
Ultra Librarian 3D Model Ultra Librarian MLP2012V4R7MT0S1 CAD Model

Description

The 747520-MLP2012V4R7MT0S1 is a fixed inductor from TDK Corporation.

  • Series: MLP
  • Construction: multilayer
  • Shielding: shielded
  • Package: tape & reel
  • Size/Dimension: 0.079" L x 0.049" W (2.00mm x 1.25mm)
  • Seated Height: 0.039" (1.00mm)
  • Inductance: 4.7 µH
  • Tolerance: ±20%
  • DC Resistance (DCR): 520mOhm max
  • Operating Temperature: -40°C to 125°C
  • Mounting Type: surface mount
  • Current Rating: 600 mA
  • Inductance Frequency Test: 2 MHz
  • Status: active
  • Package: 4,000 pcs standard
