Same model may have multiple batches, images only for reference.

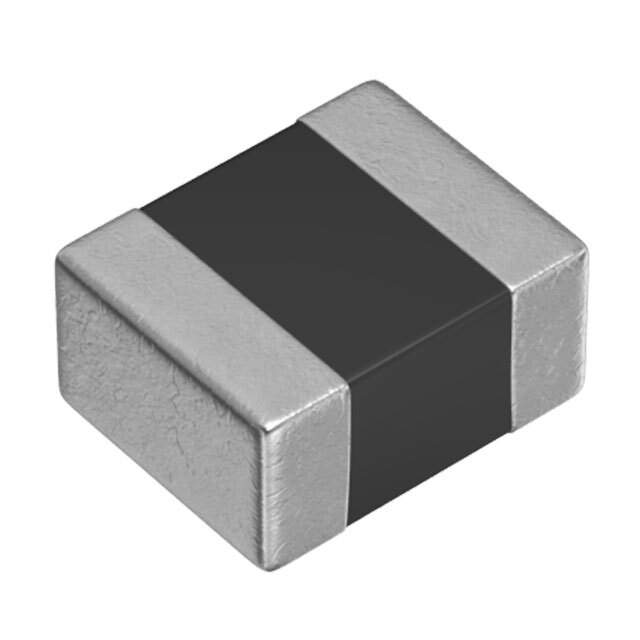

MLP2520H4R7MT0S1 Real Image
Same model may have multiple batches, images only for reference.

MLP2520H4R7MT0S1

Part No MLP2520H4R7MT0S1
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 4.7UH 1A 169 MOHM SMD / 4.7 µH Shielded Multilayer Inductor 1 A 169mOhm Max 1008 (2520 Metric)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Manufacturer TDK Corporation
Packaging Reel - TR
Type Multilayer
Material - Core Ferrite
Inductance 4.7 µH
Tolerance ±20%
Current Rating (Amps) 1 A
Shielding Shielded
DC Resistance (DCR) 169mOhm Max
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 2 MHz
Mounting Surface Mount
Case / Package 1008 (2520 Metric)
Supplier Device Package 1008 (2520 Metric)
Size / Dimension 0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max) 0.039" (1.00mm)
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Other Part Number 445-9506-2,445-9506-1,MLP2520H4R7M,445-9506-6
Standard Package 3,000
Win Source Part Number 1327734-MLP2520H4R7MT0S1
Ultra Librarian 3D Model Ultra Librarian MLP2520H4R7MT0S1 CAD Model

Description

The TDK Corporation MLP2520H4R7MT0S1 is a multilayer shielded inductor with a ferrite core.

  • Size: 0.098" L x 0.079" W (2.50mm x 2.00mm)
  • Inductance: 4.7 µH
  • Mounting: Surface Mount
  • Tolerance: ±20%
  • DC Resistance (DCR): 169mOhm Max
  • Current Rating: 1 A
  • Temperature Range: -40°C ~ 125°C
  • Package: 1008 (2520 Metric)
  • Standard Package: 3,000
  • Ideal for: use in various electronic applications
