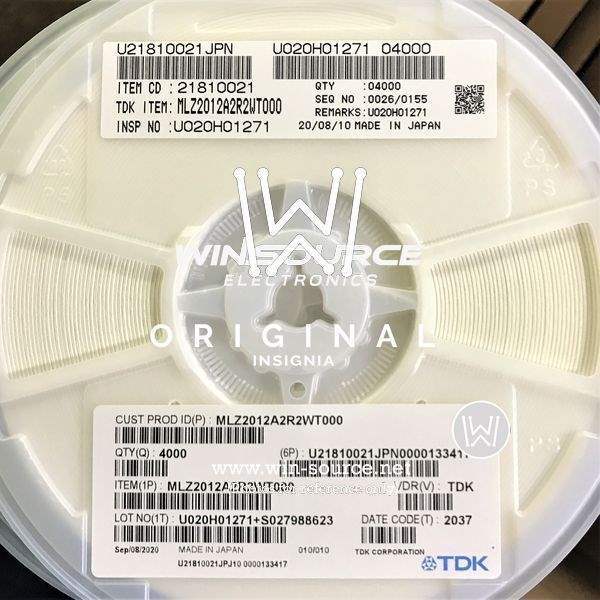

MLZ2012A2R2WT000 Real Image MLZ2012A2R2WT000 label picture
Same model may have multiple batches, images only for reference.
MLZ2012A2R2WT000 Real Image MLZ2012A2R2WT000 label picture
MLZ2012A2R2WT000 Real Image MLZ2012A2R2WT000 label picture
Same model may have multiple batches, images only for reference.

MLZ2012A2R2WT000

Part No MLZ2012A2R2WT000
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 2.2UH 650MA 150 MOHM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer TDK Corporation
Packaging Reel - TR
Status Active
Type Multilayer
Material - Core Ferrite
Inductance 2.2μH
Tolerance ±20%
Current Rating 650mA
Current - Saturation 210mA
DC Resistance (DCR) 195 mOhm Max
Frequency - Self Resonant 120MHz
Temperature Range - Operating -55°C to 125°C
Frequency - Test 10MHz
Mounting SMD (SMT)
Case / Package 0805 (2012 Metric)
Height - Seated (Max) 0.041" (1.05mm)
Win Source Part Number 1077878-MLZ2012A2R2WT000
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian MLZ2012A2R2WT000 CAD Model

Description

The MLZ2012A2R2WT000 is a multilayer inductor with a current rating of 650mA from TDK Corporation.

  • Current Rating: 650mA
  • Inductance: 2.2μH
  • Height: 0.041 inches (1.05mm)
  • Mounting: Surface mountable
  • Tolerance: ±20%
  • Core Material: Ferrite
  • Current Saturation: 210mA
  • Self-Resonant Frequency: 120MHz
  • Test Frequency: 10MHz
  • Product Category: Inductor, coil, choke
  • DC Resistance: 195 mOhm Max
  • Status: Active
  • Temperature Range: -55°C to 125°C
  • Case/Package: 0805 (2012 Metric)
