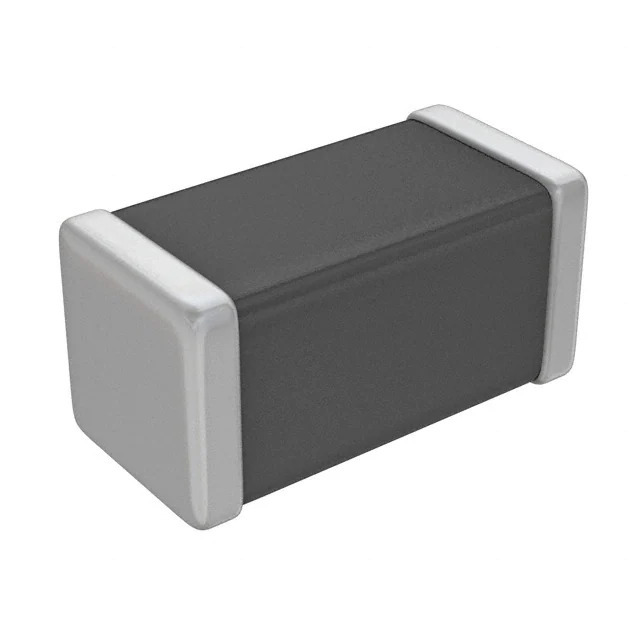

MPZ1005F470ETD25 TDK Corporation
Same model may have multiple batches, images only for reference.

MPZ1005F470ETD25

Part No MPZ1005F470ETD25
Manufacturer TDK Corporation
Catalog Ferrite Beads and Chips
Description FERRITE BEAD 47 OHM 0402 1LN
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters - Ferrite Beads and Chips
Mfr TDK Corporation
Series MPZ-E
Package Tape & Reel
Product Status Active
Filter Type Power Line
Number of Lines 1
Impedance @ Frequency 47 Ohms @ 100 MHz
Current Rating (Max) 450mA
DC Resistance (DCR) (Max) 450mOhm
Ratings AEC-Q200
Temperature Range - Operating -55°C ~ 125°C
Package / Case 0402 (1005 Metric)
Mounting Type Surface Mount
Height (Max) 0.022" (0.55mm)
Size / Dimension 0.039" L x 0.020" W (1.00mm x 0.50mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1369159-MPZ1005F470ETD25
Ultra Librarian 3D Model Ultra Librarian MPZ1005F470ETD25 CAD Model

Description

The MPZ1005F470ETD25 is a ferrite bead and chip filter from TDK Corporation.

  • Series: MPZ-E
  • Package: 0402 (1005 Metric)
  • Mounting Type: Surface Mount
  • REACH: Unaffected
  • Temperature Range: -55°C to 125°C
  • ECCN: EAR99
  • Height: 0.022" (0.55mm)
  • Filter Type: Power Line
  • Number of Lines: 1
  • Impedance: 47 Ohms @ 100 MHz
  • Maximum Current: 450mA
  • Maximum DC Resistance: 450mOhm
  • Status: Active
  • Packaging: Tape and Reel
  • Size: 0.039" L x 0.020" W (1.00mm x 0.50mm)
