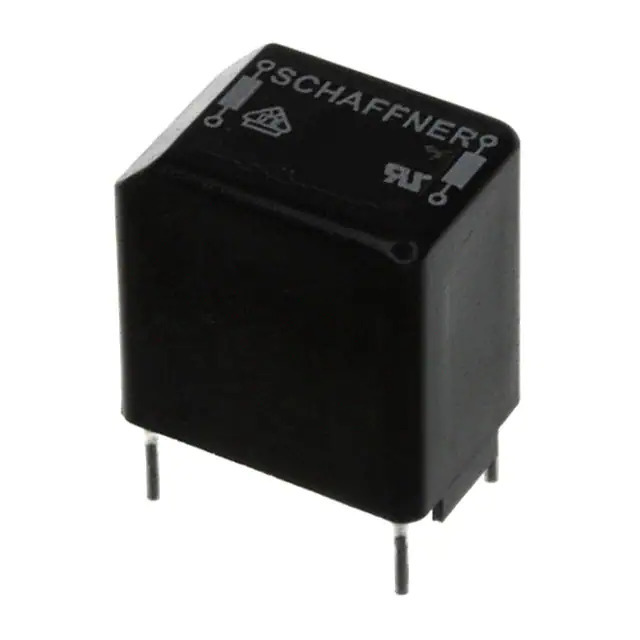

RN212-4-02-0M7

Name: RN212-4-02-0M7
Brand: Schaffner EMC Inc.
SKU: 1355903
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	RN212-4-02-0M7
Manufacturer	Schaffner EMC Inc.
Catalog	Common Mode Chokes
Description	CMC 700UH 4A 2LN TH / 700 µH @ 10 kHz 2 Line Common Mode Choke Through Hole 4A DCR 24mOhm (Typ)
Datasheet	RN212-4-02-0M7 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Filters - Common Mode Chokes
Mfr	Schaffner EMC Inc.
Series	RN
Package	Tube
Product Status	Active
Filter Type	Power Line
Number of Lines	2
Inductance @ Frequency	700 µH @ 10 kHz
Current Rating (Max)	4A
DC Resistance (DCR) (Max)	24mOhm (Typ)
Voltage Rating - DC	-
Voltage Rating - AC	300V
Temperature Range - Operating	-40°C ~ 100°C
Ratings	-
Approval Agency	ENEC, UR, VDE
Features	-
Mounting Type	Through Hole
Size / Dimension	0.709" L x 0.492" W (18.00mm x 12.50mm)
Height (Max)	0.799" (20.30mm)
Package / Case	Vertical, 4 PC Pin
Base Product Number	RN212
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8548.00.0000
Win Source Part Number	1355903-RN212-4-02-0M7
Ultra Librarian 3D Model	Ultra Librarian RN212-4-02-0M7 CAD Model

Alternative Products

Description

The Schaffner EMC Inc. RN212-4-02-0M7 is a common mode choke filter designed for power line applications.

Voltage Rating: 300V AC
Current Rating: 4A
Package: Vertical
Pins: 4 PC pins for through-hole mounting
Size: 0.709" L x 0.492" W (18.00mm x 12.50mm)
Height: 0.799" (20.30mm)
Operating Temperature: -40°C to 100°C
REACH: Compliant
DC Resistance: 24mOhm
Approvals: ENEC, UR, and VDE
Status: Active
