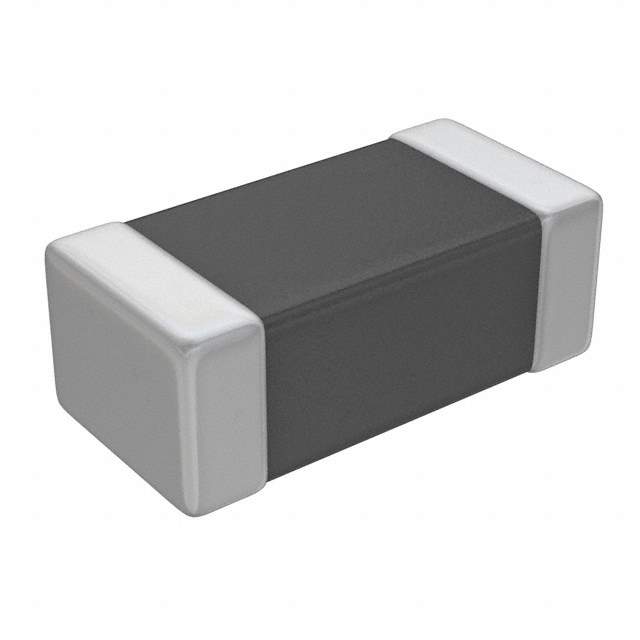

Same model may have multiple batches, images only for reference.

MPZ1608S101ATAH0

Name: MPZ1608S101ATAH0
Brand: TDK Corporation
SKU: 240144
Availability: InStock
Rating: 4.85 (3917 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	MPZ1608S101ATAH0
Manufacturer	TDK Corporation
Catalog	Ferrite Beads and Chips
Description	Ferrite Beads Multi-Layer Power 100Ohm 25% 100MHz 3A 0.03Ohm DCR 0603 T/R / FERRITE BEAD 100 OHM 0603 1LN
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Filters
Manufacturer	TDK Corporation
Packaging	Reel - TR
Status	Active
Filter Type	Power Line
Number of Lines	1
Impedance @ Frequency	100 Ohm @ 100MHz
Current Rating (Max)	3A
DC Resistance (DCR) (Max)	30 mOhm
Temperature Range - Operating	-55°C to 125°C
Mounting	SMD (SMT)
Height (Max)	0.030" (0.75mm)
Dimension	0.063" L x 0.031" W (1.60mm x 0.80mm)
Win Source Part Number	024341-MPZ1608S101ATAH0
Is this a common-used part?	Yes
Popularity	High
Supply and Demand Status	Sufficient
Family Name	MPZ
Introduction Date	January 01, 2000
ECCN	EAR99
Country of Origin	Japan
Halogen Free	Compliant
Estimated EOL Date	2027
Ultra Librarian 3D Model	Ultra Librarian MPZ1608S101ATAH0 CAD Model

Alternative Products

Description

The MPZ1608S101ATAH0 is a power line filter from TDK Corporation that has a current rating of 3A.

Impedance: 100 Ohm @ 100MHz
DC Resistance: 30 mOhm
Mounting Type: surface mount device (SMD)
Height: 0.030" (0.75mm)
Series: MPZ series
Line: one line
Temperature Range: -55°C to 125°C
Dimension: 0.063" L x 0.031" W (1.60mm x 0.80mm)
