Same model may have multiple batches, images only for reference.

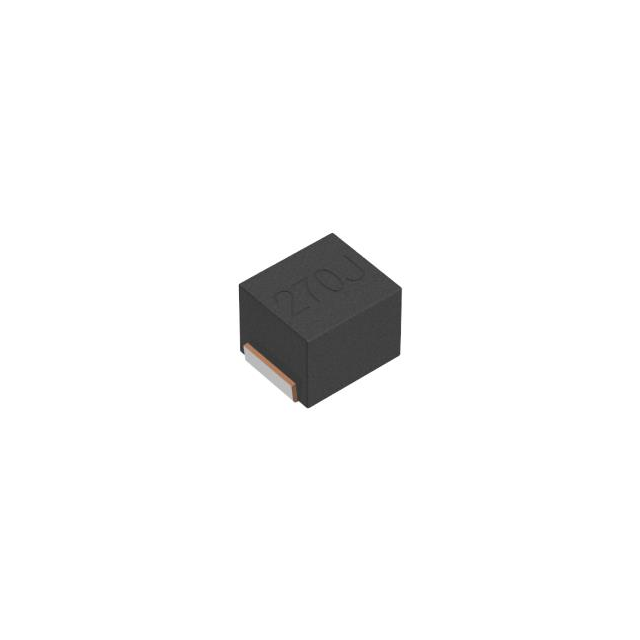

NLV25T-010J-PFD Real Image
Same model may have multiple batches, images only for reference.

NLV25T-010J-PFD

Part No NLV25T-010J-PFD
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 10NH 530MA 260MOHM SMD / 10 nH Unshielded Drum Core, Wirewound Inductor 530 mA 260mOhm Max 1008 (2520 Metric)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Manufacturer TDK Corporation
Packaging Reel - TR
Product Status Not For New Designs
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 10 nH
Tolerance ±5%
Current Rating (Amps) 530 mA
Shielding Unshielded
DC Resistance (DCR) 260mOhm Max
Q @ Freq 15 @ 100MHz
Frequency - Self Resonant 2.15GHz
Ratings AEC-Q200
Temperature Range - Operating -40°C ~ 105°C
Inductance Frequency - Test 100 MHz
Mounting Surface Mount
Case / Package 1008 (2520 Metric)
Supplier Device Package 1008 (2520 Metric)
Size / Dimension 0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max) 0.075" (1.90mm)
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Standard Package 2,000
Win Source Part Number 1327790-NLV25T-010J-PFD
Ultra Librarian 3D Model Ultra Librarian NLV25T-010J-PFD CAD Model

Description

The NLV25T-010J-PFD from TDK Corporation is a fixed inductor that belongs to the inductors, coils, and chokes category.

  • Type: Drum Core, Wirewound
  • Shielding: Unshielded
  • Inductance: 10nH
  • Tolerance: ±5%
  • Package: 1008 (2520 Metric)
  • Mounting: Surface Mount Technology
  • Operating Temperature: -40°C to 105°C
  • Current Rating: 530mA
  • MSL Level: 1 (Unlimited)
  • Standard Package: 2,000 units
