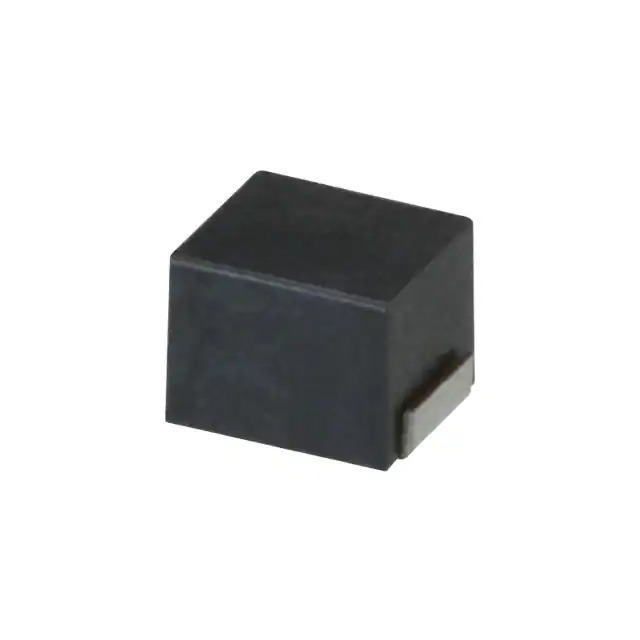

Same model may have multiple batches, images only for reference.
NLV25T-012J-EF TDK Corporation
Same model may have multiple batches, images only for reference.

NLV25T-012J-EF

Part No NLV25T-012J-EF
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 12NH 500MA 270MOHM SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr TDK Corporation
Series NLV-EF
Package Tape & Reel
Product Status Active
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 12 nH
Tolerance ±5%
Current Rating (Amps) 500 mA
Current - Saturation (Isat) -
Shielding Unshielded
DC Resistance (DCR) 270mOhm Max
Q @ Freq 15 @ 100MHz
Frequency - Self Resonant 2.05GHz
Ratings -
Temperature Range - Operating -40°C ~ 105°C
Inductance Frequency - Test 100 MHz
Mounting Type Surface Mount
Package / Case 1008 (2520 Metric)
Supplier Device Package 1008 (2520 Metric)
Size / Dimension 0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max) 0.075" (1.90mm)
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 1369997-NLV25T-012J-EF
Ultra Librarian 3D Model Ultra Librarian NLV25T-012J-EF CAD Model

Description

The 1369997-NLV25T-012J-EF is a drum core, wirewound fixed inductor from TDK Corporation's NLV-EF series.

  • Size / Dimension: 0.098" L x 0.079" W (2.50mm x 2.00mm)
  • Height - Seated (Max): 0.075" (1.90mm)
  • Mounting Type: Surface Mount
  • Series: NLV-EF
  • Inductance: 12 nH
  • Tolerance: ±5%
  • DC Resistance (DCR): 270mOhm Max
  • Current Rating (Max): 500 mA
  • Frequency - Self Resonant: 2.05GHz
  • Shielding: Unshielded
  • Material - Core: Ferrite
  • Operating Temperature: -40°C ~ 105°C
  • REACH: Affected
  • Package / Case: 1008 (2520 Metric)
