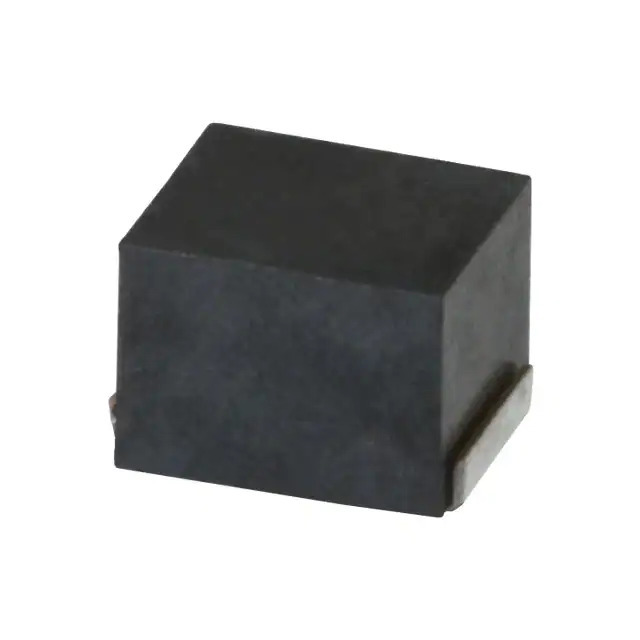

NLV32T-R22J-EF

Name: NLV32T-R22J-EF
Brand: TDK Corporation
SKU: 1369931
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	NLV32T-R22J-EF
Manufacturer	TDK Corporation
Catalog	Fixed Inductors
Description	FIXED IND 220NH 450MA 320MOHM SM
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes - Fixed Inductors
Mfr	TDK Corporation
Series	NLV-EF
Package	Tape & Reel
Product Status	Active
Type	Drum Core, Wirewound
Material - Core	Ferrite
Inductance	220 nH
Tolerance	±5%
Current Rating (Amps)	450 mA
Current - Saturation (Isat)	-
Shielding	Unshielded
DC Resistance (DCR)	320mOhm Max
Q @ Freq	30 @ 25.2MHz
Frequency - Self Resonant	350MHz
Ratings	-
Temperature Range - Operating	-40°C ~ 105°C
Inductance Frequency - Test	25.2 MHz
Mounting Type	Surface Mount
Package / Case	1210 (3225 Metric)
Supplier Device Package	1210
Size / Dimension	0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max)	0.094" (2.40mm)
MSL Level	1 (Unlimited)
REACH Status	REACH Affected
ECCN	EAR99
HTSUS	8504.50.8000
Win Source Part Number	1369931-NLV32T-R22J-EF
Ultra Librarian 3D Model	Ultra Librarian NLV32T-R22J-EF CAD Model

Alternative Products

Description

The NLV-EF series inductor is a drum core, wirewound type inductor manufactured by TDK Corporation.

Series: NLV-EF
Inductor Type: Fixed Inductor
Operating Temperature: -40°C to 105°C
Size: 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height: 0.094" (2.40mm)
Inductance: 220 nH
Current Rating: 450 mA
Tolerance: ±5%
DC Resistance (DCR): 320mOhm max
Self-Resonant Frequency: 350MHz
Q Value: 30 @ 25.2MHz
Mounting Type: Surface Mount
Package: Tape & Reel
REACH: Affected
ECCN: EAR99
Material: Ferrite
Shielding: Unshielded
