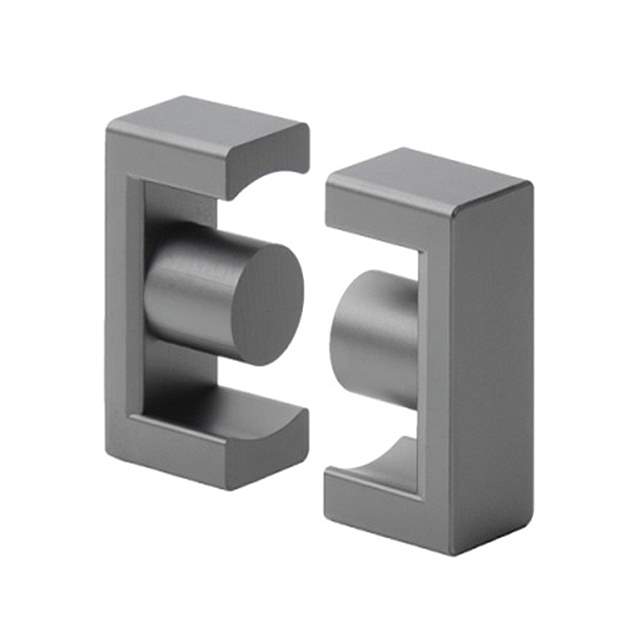

PC47EER28-Z Real Image
Same model may have multiple batches, images only for reference.

PC47EER28-Z

Part No PC47EER28-Z
Manufacturer TDK Corporation
Catalog Ferrite Cores
Description FERRITE CORE EER 2.87UH 2PC SET / Uncoated PC47 Ferrite Core E Type 1.124" (28.55mm) Length 0.449" (11.40mm) Width Diameter 0.551" (14.00mm) Height
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Magnetics - Transformer, Inductor Components>Ferrite Cores
Mfr TDK Corporation
Series E
Package Tray
Core Type E
Supplier Device Package EER 28
Material PC47
Inductance Factor (Al) 2.87 µH
Tolerance ±25%
Gap Ungapped
Core Factor (ΣI/A) mm<sup>-1</sup> 0.78
Effective Length (le) mm 64
Effective Area (Ae) mm2 82.1
Effective Magnetic Volume (Ve) mm3 5250
Finish Uncoated
Height 0.551" (14.00mm)
Length 1.124" (28.55mm)
Width 0.449" (11.40mm)
MSL Level Not Applicable
ECCN EAR99
HTSUS 8504.90.9630
Other Names 445-180894
Standard Package 150
Win Source Part Number 989966-PC47EER28-Z
Ultra Librarian 3D Model Ultra Librarian PC47EER28-Z CAD Model

Description

The TDK Corporation PC47EER28-Z is a ferrite core with a length of 1.124" (28.55mm), a height of 0.551" (14.00mm), and a width of 0.449" (11.40mm).

  • Length: 1.124" (28.55mm)
  • Height: 0.551" (14.00mm)
  • Width: 0.449" (11.40mm)
  • Inductance Factor (Al): 2.87 µH
  • Tolerance: ±25%
  • Effective Magnetic Volume (Ve): 5250 mm3
  • Series: E
  • ECCN: EAR99
  • Packaging: Tray
  • Pieces per Standard Package: 150
  • Additional Part Numbers: 445-180894
