Same model may have multiple batches, images only for reference.

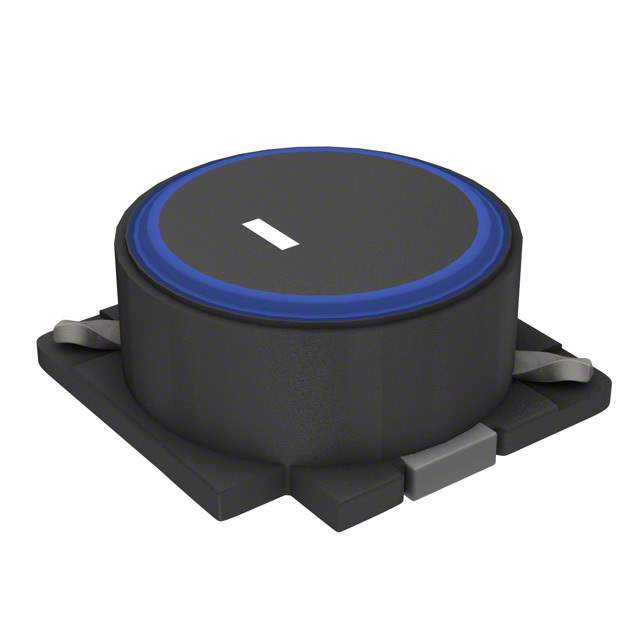

SLF12565T-7R0N5R0-H Real Image
Same model may have multiple batches, images only for reference.

SLF12565T-7R0N5R0-H

Part No SLF12565T-7R0N5R0-H
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 7UH 5A 21.24 MOHM SMD / 7 µH Shielded Drum Core, Wirewound Inductor 5 A 21.24mOhm Max Nonstandard
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Manufacturer TDK Corporation
Packaging Reel - TR
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 7 µH
Tolerance ±30%
Current Rating (Amps) 5 A
Current - Saturation (Isat) 5.7A
Shielding Shielded
DC Resistance (DCR) 21.24mOhm Max
Ratings AEC-Q200
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 1 kHz
Mounting Surface Mount
Case / Package Nonstandard
Size / Dimension 0.492" L x 0.492" W (12.50mm x 12.50mm)
Height - Seated (Max) 0.270" (6.85mm)
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Other Part Number 445-3850-2,445-3850-1,SLF12565T7R0N5R0H,445-3850-6
Standard Package 500
Win Source Part Number 1327864-SLF12565T-7R0N5R0-H
Ultra Librarian 3D Model Ultra Librarian SLF12565T-7R0N5R0-H CAD Model

Description

The TDK Corporation SLF12565T-7R0N5R0-H is a fixed inductor that is designed to work in various electronic circuits.

  • Manufacturer: TDK Corporation
  • Core Type: Drum core, wirewound
  • Shielding: Shielded
  • Size: 0.492" L x 0.492" W (12.50mm x 12.50mm)
  • Inductance: 7 µH
  • Height: 0.270" (6.85mm)
  • Tolerance: ±30%
