Same model may have multiple batches, images only for reference.

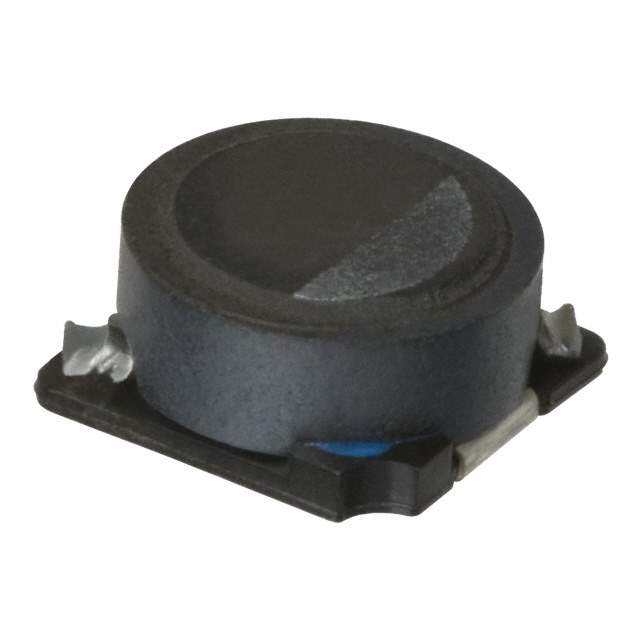

SLF6028T-220MR77 Real Image
Same model may have multiple batches, images only for reference.

SLF6028T-220MR77

Part No SLF6028T-220MR77
Manufacturer TDK Corporation
Catalog Fixed Inductors
Datasheet
SLF6028T-220MR77 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr TDK Corporation
Series SLF
Package Tape & Reel
Product Status Obsolete
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 22 µH
Tolerance ±20%
Current Rating (Amps) 1.3 A
Current - Saturation (Isat) 770mA
Shielding Shielded
DC Resistance (DCR) 124.8mOhm Max
Temperature Range - Operating -40°C ~ 105°C
Inductance Frequency - Test 1 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.236" L x 0.236" W (6.00mm x 6.00mm)
Height - Seated (Max) 0.118" (3.00mm)
Other Names 445-1178-6,SLF6028T220MR77,445-1178-2,445-1178-1
Standard Package 1,000
RoHS Status RoHS non-compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 1272680-SLF6028T-220MR77
Ultra Librarian 3D Model Ultra Librarian SLF6028T-220MR77 CAD Model

Description

The SLF6028T-220MR77 inductor is a drum core, wirewound type component that belongs to the fixed inductors category.

  • Type: Drum core, wirewound fixed inductor
  • Shielding: Shielded
  • Inductance: 22 µH
  • Tolerance: ±20%
  • Material: Ferrite
  • DC Resistance (DCR): 124.8mOhm Max
  • Current Rating: 1.3 A
  • Saturation Current: 770mA
  • Mounting Type: SMD (SMT)
  • Package/Case: Nonstandard
  • Temperature Range: -40°C to 105°C
  • Height: 0.118" (3.00mm)
  • Dimensions: 0.236" L x 0.236" W (6.00mm x 6.00mm)
  • Lifecycle Status: Obsolete
  • RoHS Compliance: Not RoHS compliant
