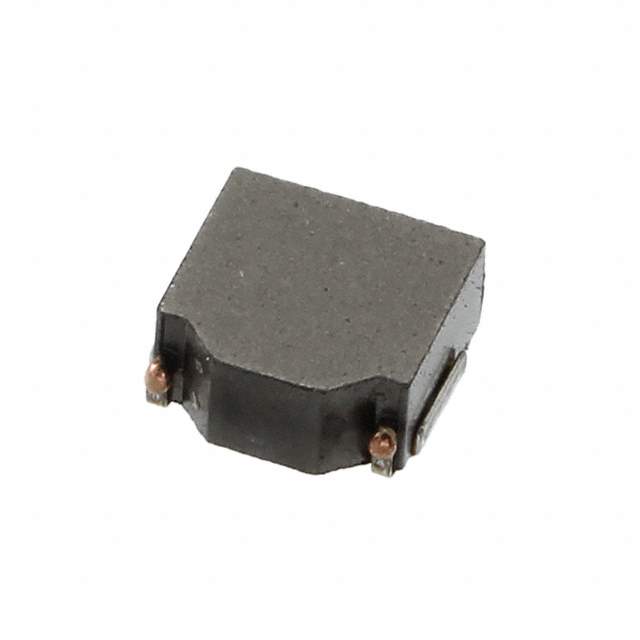

SPM4020T-R47M Real Image
Same model may have multiple batches, images only for reference.

SPM4020T-R47M

Part No SPM4020T-R47M
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 470NH 6.1A 19.5MOHM SM / 470 nH Shielded Drum Core, Wirewound Inductor 6.1 A 19.5mOhm Max Nonstandard
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Manufacturer TDK Corporation
Packaging Reel
Product Status Last Time Buy
Type Drum Core, Wirewound
Material - Core Metal
Inductance 470 nH
Tolerance ±20%
Current Rating (Amps) 6.1 A
Current - Saturation (Isat) 10.6A
Shielding Shielded
DC Resistance (DCR) 19.5mOhm Max
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting Surface Mount
Case / Package Nonstandard
Size / Dimension 0.173" L x 0.161" W (4.40mm x 4.10mm)
Height - Seated (Max) 0.079" (2.00mm)
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Other Part Number 445-172369-1,445-172369-2,445-172369-6
Standard Package 500
Win Source Part Number 1327750-SPM4020T-R47M
Ultra Librarian 3D Model Ultra Librarian SPM4020T-R47M CAD Model

Description

The TDK Corporation SPM4020T-R47M is a surface mount inductor with a drum core and wirewound structure.

  • Shielding: Yes
  • Size: 0.173" L x 0.161" W (4.40mm x 4.10mm)
  • Inductance: 470 nH
  • Tolerance: ±20%
  • Height - Seated (Max): 0.079" (2.00mm)
  • DC Resistance (DCR): 19.5mOhm Max
  • Current Rating: 6.1 A
  • Current Saturation (Isat): 10.6A
  • Temperature Range: -40°C ~ 125°C
  • Ideal for: use in electronic devices that require the storage of energy in a magnetic field
