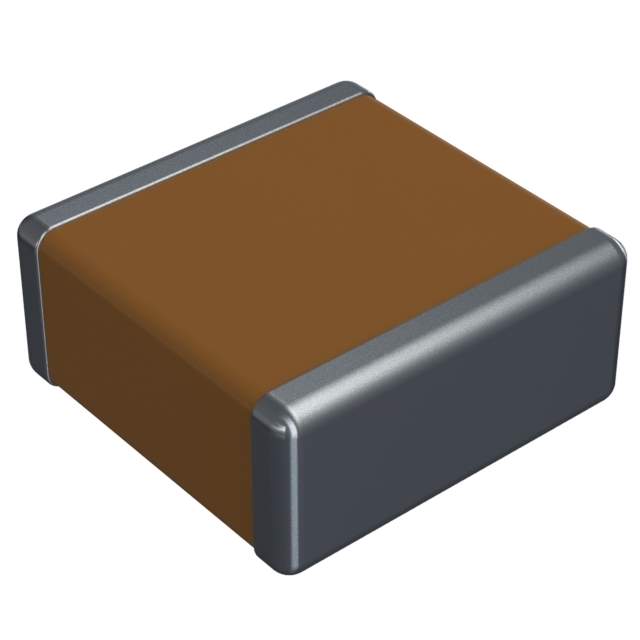

2225GC223KAT1A Real Image
Same model may have multiple batches, images only for reference.

2225GC223KAT1A

Part No 2225GC223KAT1A
Manufacturer AVX Corp/Kyocera Corp
Catalog Ceramic Capacitors
Description CAP CER 0.022UF 2KV X7R 2225 / 0.022 µF ±10% 2000V (2kV) Ceramic Capacitor X7R 2225 (5763 Metric)
Datasheet
2225GC223KAT1A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Ceramic Capacitors
Mfr KYOCERA AVX
Package Tape & Reel (TR)
Capacitance 0.022 µF
Tolerance ±10%
Voltage - Rated 2000V (2kV)
Temperature Coefficient X7R
Temperature Range - Operating -55°C ~ 125°C
Features High Voltage
Applications General Purpose
Mounting Type Surface Mount, MLCC
Package / Case 2225 (5763 Metric)
Dimension 0.225" L x 0.250" W (5.72mm x 6.35mm)
Thickness (Max) 0.100" (2.54mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.24.0020
Standard Package 1,000
Win Source Part Number 1159068-2225GC223KAT1A
Ultra Librarian 3D Model Ultra Librarian 2225GC223KAT1A CAD Model

Description

This ceramic capacitor from KYOCERA AVX is ideal for general purpose applications.

  • Capacitance: 0.022 µF
  • Voltage Rating: 2000V (2kV)
  • Temperature Coefficient: X7R
  • Package: Tape & Reel (TR)
  • Case Size: 2225 (5763 Metric)
  • Operating Temperature: -55°C to 125°C
  • Standard Package: 1,000 pieces
