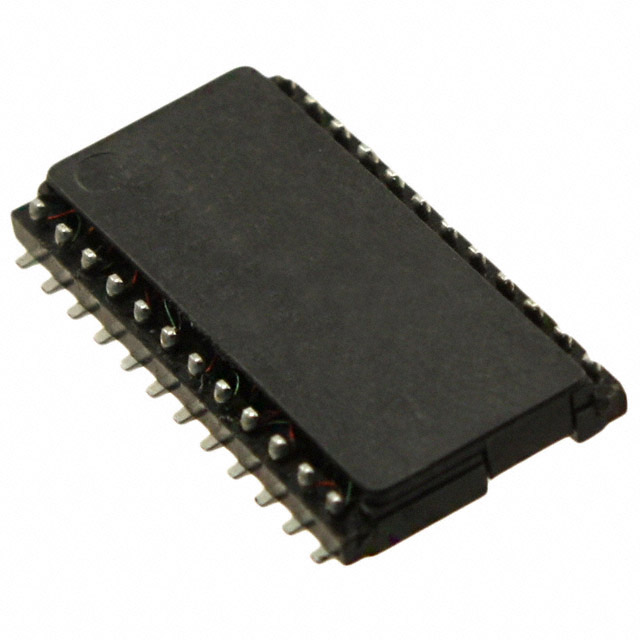

TLA-7T201LF-T TDK Corporation
Same model may have multiple batches, images only for reference.

TLA-7T201LF-T

Part No TLA-7T201LF-T
Manufacturer TDK Corporation
Catalog Pulse Transformers
Description TRANSFORMER LAN 10/100/1000 T / 350μH LAN 10/100/1000 Base-T Pulse Transformer 1CT:1CT Surface Mount
Datasheet
TLA-7T201LF-T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers - Pulse Transformers
Mfr TDK Corporation
Series TLA
Package Tape & Reel
Product Status Obsolete
Transformer Type LAN 10/100/1000 Base-T
Inductance 350µH
Mounting Type Surface Mount
Size / Dimension 0.630" L x 0.335" W (16.00mm x 8.50mm)
Height - Seated (Max) 0.087" (2.20mm)
Temperature Range - Operating 0°C ~ 70°C
Standard Package 1,500 pcs
Moisture Sensitivity Level (MSL) 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.2000
Win Source Part Number 368539-TLA-7T201LF-T
Ultra Librarian 3D Model Ultra Librarian TLA-7T201LF-T CAD Model

Description

The 368539-TLA-7T201LF-T is a pulse transformer from the TLA series by TDK Corporation.

  • Application: LAN 10/100/1000 Base-T
  • Size: 0.630" L x 0.335" W (16.00mm x 8.50mm)
  • Height Seated: 0.087" (2.20mm)
  • Operating Temperature: 0°C to 70°C
  • Inductance: 350µH
  • Package: Tape and Reel
  • Standard Package Quantity: 1,500 pcs
  • Status: Obsolete
