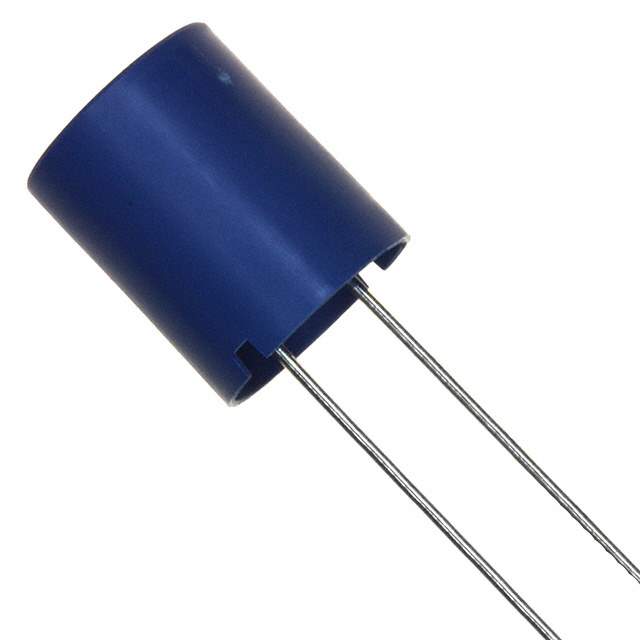

TSL1315RA-470K3R4-PF

Part No TSL1315RA-470K3R4-PF
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 47UH 3.4A 52 MOHM TH
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer TDK Corporation
Packaging AMMO PACKAGE
Status Obsolete(EOL)
Inductance 47μH
Tolerance ±10%
Current Rating 3.4A
Current - Saturation 5.7A
DC Resistance (DCR) 52 mOhm Max
Q @ Freq 50 @ 2.52MHz
Frequency - Self Resonant 5.6MHz
Temperature Range - Operating -20°C to 85°C
Frequency - Test 1kHz
Mounting Through Hole
Height - Seated (Max) 0.669" (17.00mm)
Win Source Part Number 122971-TSL1315RA-470K3R4-PF
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian TSL1315RA-470K3R4-PF CAD Model

Description

The TSL1315RA-470K3R4-PF is a shielded power inductor manufactured by TDK Corporation. It is designed to provide efficient power conversion in a compact size, making it ideal for a variety of applications where space is at a premium.

Applications:

  • DC-DC Converters: Used in step-up (boost), step-down (buck), and buck-boost converters for voltage regulation in various electronic devices.
  • Power Supplies: Incorporated in power supplies for a wide range of electronic devices, ensuring stable and efficient power delivery.
  • Portable Electronics: Found in smartphones, tablets, laptops, and other portable devices to manage power effectively.
  • LED Lighting: Used in LED drivers to provide consistent current and voltage for optimal LED performance.
  • Automotive Electronics: Utilized in automotive systems, including power management and control systems.

Features:

  • Shielded Construction: Minimizes electromagnetic interference (EMI) for improved performance.
  • High Current Capacity: Designed to handle high current levels without saturating.
  • Compact Size: Small footprint allows for use in space-constrained applications.
  • Low DC Resistance (DCR): Reduces power loss and improves efficiency.
  • Excellent Temperature Stability: Maintains stable performance over a wide temperature range.

Benefits:

  • Improved Efficiency: Low DC resistance contributes to higher power conversion efficiency, minimizing heat generation.
  • Reduced EMI: Shielded construction minimizes electromagnetic interference, ensuring stable operation of nearby components.
  • Space Saving: Compact size allows for smaller and more efficient designs, maximizing board space.
  • Reliable Performance: Excellent temperature stability ensures consistent performance under varying operating conditions.
  • High Current Handling: Suitable for applications requiring high current levels.

Additional Details:

The TSL1315RA series from TDK is known for its robust design and reliable performance in power management applications. The TSL1315RA-470K3R4-PF has an inductance of 47µH (implied from 470). The 'K' denotes a tolerance of ±10%. The '3R4' most likely refers to a specific testing frequency or impedance characteristic of the inductor. The datasheet from TDK is crucial for specifying inductance tolerance, saturation current, and other important parameters to guarantee optimal performance and dependability in the application. The 'PF' suffix likely indicates the packaging type, often related to automated assembly.
