Same model may have multiple batches, images only for reference.

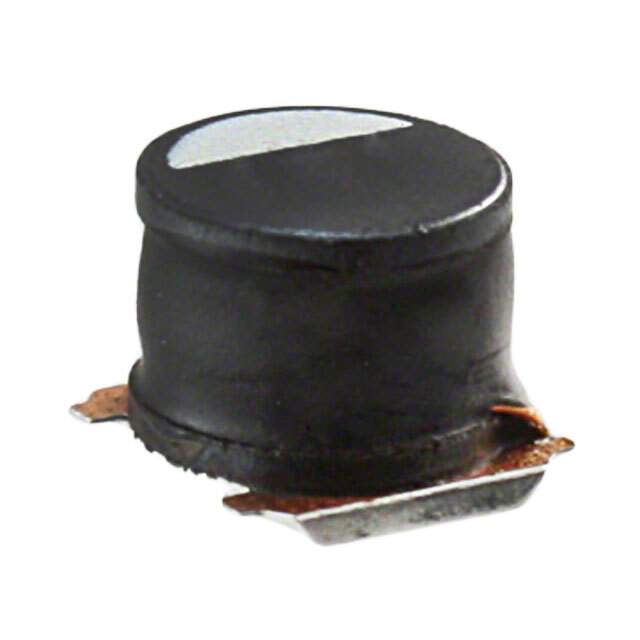

VLC5045T-220M Real Image
Same model may have multiple batches, images only for reference.

VLC5045T-220M

Part No VLC5045T-220M
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 22UH 1.6A 170 MOHM SMD
Datasheet
VLC5045T-220M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer TDK Corporation
Packaging Reel - TR
Status Obsolete(EOL)
Type Wirewound
Inductance 22μH
Tolerance ±20%
Current Rating 1.6A
Current - Saturation 1.6A
DC Resistance (DCR) 170 mOhm Max
Temperature Range - Operating -40°C to 105°C
Frequency - Test 100kHz
Mounting SMD (SMT)
Height - Seated (Max) 0.177" (4.50mm)
Win Source Part Number 121489-VLC5045T-220M
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian VLC5045T-220M CAD Model

Description

The VLC5045T-220M is an inductor coil from TDK Corporation.

  • Status: Obsolete (EOL)
  • Popularity: Medium
  • Supply and Demand: Balance of supply and demand
  • Type: Wirewound inductor
  • Inductance: 22μH
  • Current Rating: 1.6A
  • Tolerance: ±20%
  • DC Resistance: 170 mΩ max
