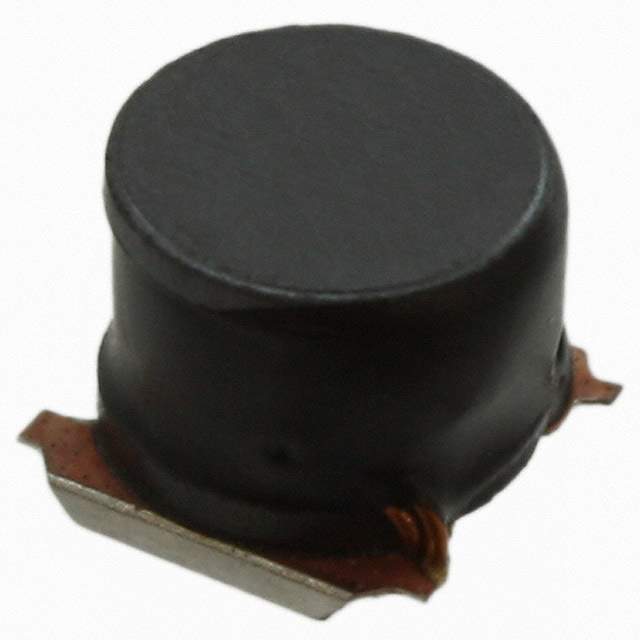

VLC5045T-3R3N Real Image
Same model may have multiple batches, images only for reference.

VLC5045T-3R3N

Part No VLC5045T-3R3N
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description Inductor Power Shielded Wirewound 3.3uH 30% 100KHz 4A 0.029Ohm DCR / FIXED IND 3.3UH 4A 29 MOHM SMD
Datasheet
VLC5045T-3R3N Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer TDK Corporation
Packaging Reel - TR
Status Obsolete(EOL)
Type Wirewound
Inductance 3.3μH
Tolerance ±30%
Current Rating 4A
Current - Saturation 4A
DC Resistance (DCR) 29 mOhm Max
Temperature Range - Operating -40°C to 105°C
Frequency - Test 100kHz
Mounting SMD (SMT)
Height - Seated (Max) 0.177" (4.50mm)
Win Source Part Number 103693-VLC5045T-3R3N
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Family Name VLC
Introduction Date May 20, 2002
ECCN EAR99
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian VLC5045T-3R3N CAD Model

Description

The TDK Corporation VLC5045T-3R3N Inductor is a wirewound component that is ideal for use in a variety of electronic devices.

  • Current Rating: 4A
  • Inductance: 3.3μH
  • Height: 0.177 inches
  • Mounting: SMD (SMT) mounting
  • Tolerance: ±30%
  • Current Saturation: 4A
  • Family: VLC family
  • Market: Popular
  • Status: Obsolete(EOL)
