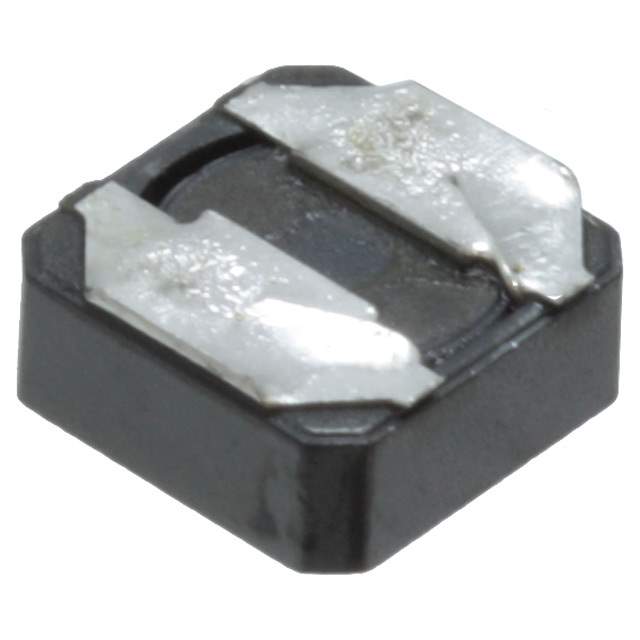

VLCF5024T-220MR59-2 Real Image
Same model may have multiple batches, images only for reference.

VLCF5024T-220MR59-2

Part No VLCF5024T-220MR59-2
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 22UH 590MA 188MOHM SMD / 22 µH Shielded Drum Core, Wirewound Inductor 590 mA 188mOhm Max Nonstandard
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr TDK Corporation
Series VLCF
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 22 µH
Tolerance ±20%
Current Rating (Amps) 590 mA
Current - Saturation (Isat) 590mA
Shielding Shielded
DC Resistance (DCR) 188mOhm Max
Temperature Range - Operating -40°C ~ 105°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.197" L x 0.197" W (5.00mm x 5.00mm)
Height - Seated (Max) 0.094" (2.40mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Other Names 445-8743-6,445-8743-2,445-8743-1,VLCF5024T220MR592
Standard Package 500
Win Source Part Number 1103917-VLCF5024T-220MR59-2
Ultra Librarian 3D Model Ultra Librarian VLCF5024T-220MR59-2 CAD Model

Description

The TDK Corporation VLCF5024T-220MR59-2 is a drum core, wirewound type inductor with a shielded package.

  • Type: Drum Core, Wirewound
  • Shielded: Yes
  • Inductance: 22 µH
  • Current Rating: 590 mA
  • Tolerance: ±20%
  • DC Resistance (DCR): 188mOhm Max
  • Height: 0.094" (2.40mm)
  • Mounting: SMD (SMT)
  • Core Material: Ferrite
  • Applications: Power management, industrial, computers & computer peripherals, consumer electronics, communications & networking. in the open market.
  • REACH: Unaffected
  • RoHS: Compliant
