Same model may have multiple batches, images only for reference.

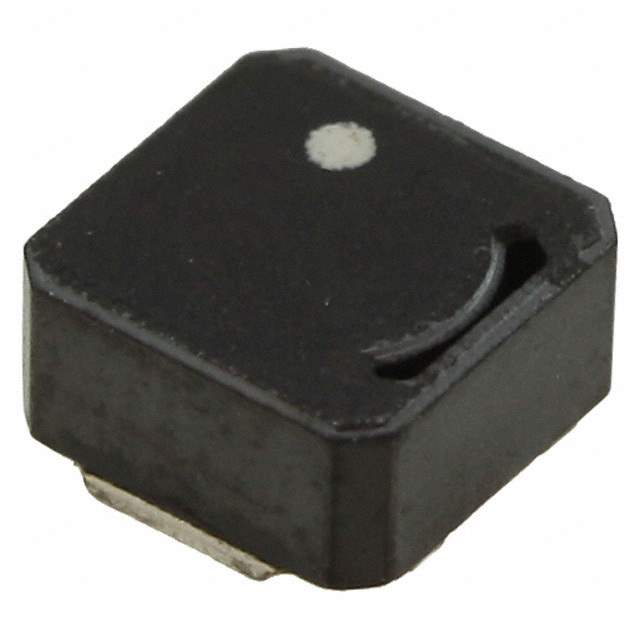

VLCF5028T-4R7N1R5-2 Real Image
Same model may have multiple batches, images only for reference.

VLCF5028T-4R7N1R5-2

Part No VLCF5028T-4R7N1R5-2
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description Inductors for Power Circuits Wound Ferrite
Datasheet
VLCF5028T-4R7N1R5-2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer TDK Corporation
Series VLCF
Packaging Reel - TR
Type Wirewound
Material - Core Ferrite
Inductance 4.7μH
Tolerance ±30%
Current Rating 1.58A
Current - Saturation 1.58A
Shielding Shielded
DC Resistance (DCR) 43 mOhm Max
Operating Temperature Range -40°C ~ 105°C
Test Frequency 100kHz
Mounting SMD
Package Nonstandard
Size 0.197" L x 0.197" W (5.00mm x 5.00mm)
Height - Seated (Maximum) 0.110" (2.80mm)
Win Source Part Number 1279360-VLCF5028T-4R7N1R5-2
Manufacturer Homepage www.tdk.com
Popularity Medium
Supply and Demand Status Balance
Family Name VLCF
Introduction Date May 20, 2002
ECCN EAR99
Country of Origin China
Halogen Free Compliant
Estimated EOL Date 2024
Ultra Librarian 3D Model Ultra Librarian VLCF5028T-4R7N1R5-2 CAD Model

Description

The VLCF5028T-4R7N1R5-2 is a wirewound inductor manufactured by TDK Corporation.

  • Applications: power supply circuits, DC-DC converters, and other applications where high inductance and low resistance are required.
  • Inductance: 4.7μH
  • Current Rating: 1.58A
  • Core: Ferrite
  • Shielding: Shielded to minimize electromagnetic interference
  • RoHS Compliant: Yes
  • Package Options: Variety available
