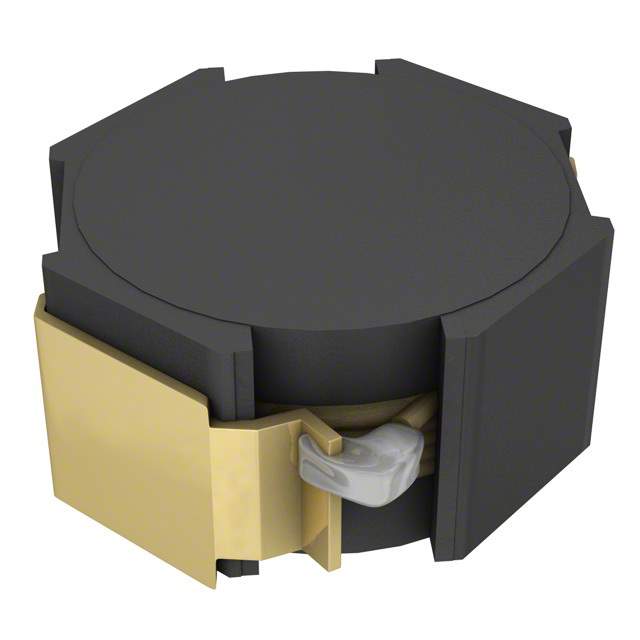

VLF10045T-2R2N7R4 Real Image
Same model may have multiple batches, images only for reference.

VLF10045T-2R2N7R4

Part No VLF10045T-2R2N7R4
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description SMD Inductors(Coils) For Power Line(Wound, Magnetic Shielded) | FIXED IND 2.2UH 7.4A 10.2 MOHM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer TDK Corporation
Packaging Reel
Status Obsolete
Type Wirewound
Material - Core Ferrite
Inductance 2.2μH
Tolerance ±30%
Current Rating (Amps) 7.4A
Current - Saturation 9.1A
Shielding Shielded
DC Resistance (DCR) 10.2mOhm Max
Temperature Range - Operating -40°C ~ 105°C
Inductance Frequency - Test 100kHz
Mounting Style SMD
Manufacturer Package Nonstandard
Parts Dimension 0.394" L x 0.382" W (10.00mm x 9.70mm)
Height - Seated (Maximum) 0.177" (4.50mm)
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 1279364-VLF10045T-2R2N7R4
Manufacturer Homepage www.tdk.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian VLF10045T-2R2N7R4 CAD Model

Description

TDK Corporation presents the VLF10045T-2R2N7R4, a wirewound product with a shielding and a type of SMD.

  • Product Name: TDK Corporation VLF10045T-2R2N7R4
  • Manufacturer: TDK Corporation
  • Type: Wirewound
  • Shielding: Yes
  • Mounting Type: SMD
  • Supply and Demand Status: Limited
  • Manufacturer Pack Quantity: 1
  • MSL Level: 1 (Unlimited)
  • Parts Dimension: 0.394" L x 0.382" W (10.00mm x 9.70mm)
  • Current Rating (Amps): 7.4A
  • Inductance Frequency-Test: 100kHz
  • Category: Inductors, Coils, Chokes
