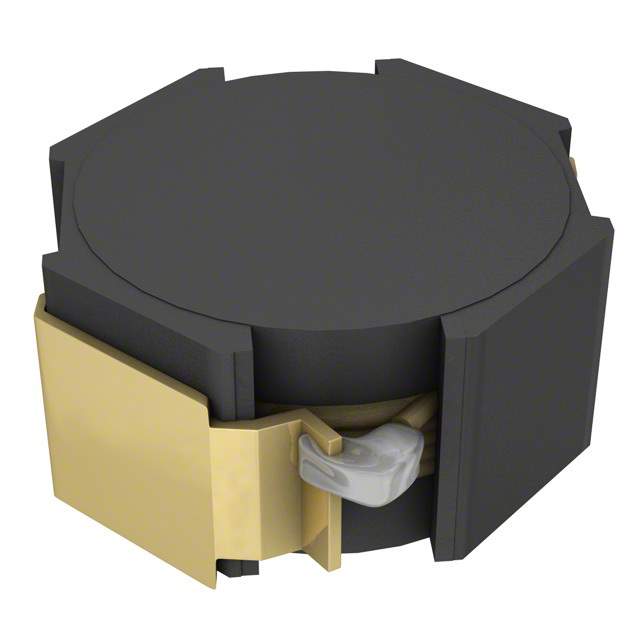

VLF10045T-4R7N6R1 Real Image
Same model may have multiple batches, images only for reference.

VLF10045T-4R7N6R1

Part No VLF10045T-4R7N6R1
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description SMD Inductors(Coils) For Power Line(Wound, Magnetic Shielded) | FIXED IND 4.7UH 6.1A 15 MOHM SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer TDK Corporation
Packaging Reel
Status Obsolete
Type Wirewound
Material - Core Ferrite
Inductance 4.7μH
Tolerance ±30%
Current Rating (Amps) 6.1A
Current - Saturation 6.3A
Shielding Shielded
DC Resistance (DCR) 15mOhm Max
Temperature Range - Operating -40°C ~ 105°C
Inductance Frequency - Test 100kHz
Mounting Style SMD
Manufacturer Package Nonstandard
Parts Dimension 0.394" L x 0.382" W (10.00mm x 9.70mm)
Height - Seated (Maximum) 0.177" (4.50mm)
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 1279366-VLF10045T-4R7N6R1
Manufacturer Homepage www.tdk.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian VLF10045T-4R7N6R1 CAD Model

Description

The TDK Corporation VLF10045T-4R7N6R1 is a wirewound reference case component that is suitable for various electronic applications.

  • Manufacturer: TDK Corporation
  • Win Source Part Number: 1279366-VLF10045T-4R7N6R1
  • Status: Limited supply and demand
  • Shielded: Yes
  • Packaging: Reel
