Same model may have multiple batches, images only for reference.

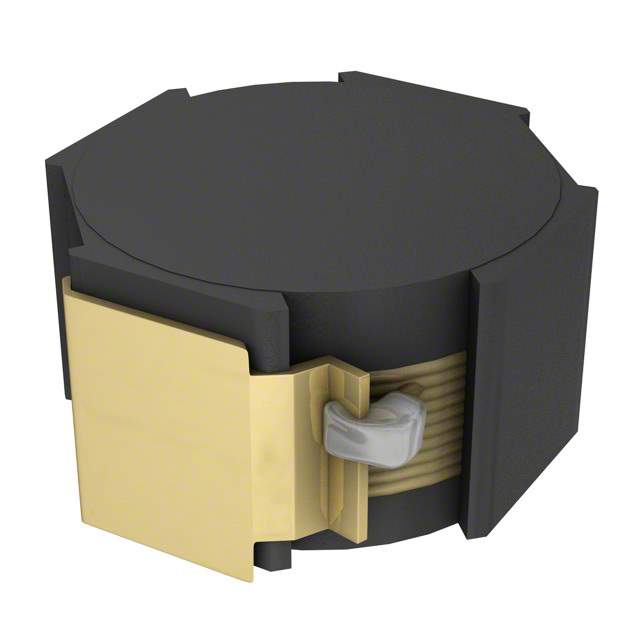

VLF12060T-2R7N100 Real Image
Same model may have multiple batches, images only for reference.

VLF12060T-2R7N100

Part No VLF12060T-2R7N100
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 2.7UH 10A 6.4 MOHM SMD / 2.7 µH Shielded Drum Core, Wirewound Inductor 10 A 6.4mOhm Max Nonstandard
Datasheet
VLF12060T-2R7N100 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr TDK Corporation
Series VLF
Package Tape & Reel
Product Status Obsolete
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 2.7 µH
Tolerance ±30%
Current Rating (Amps) 10 A
Current - Saturation (Isat) 12A
Shielding Shielded
DC Resistance (DCR) 6.4mOhm Max
Temperature Range - Operating -40°C ~ 105°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.472" L x 0.461" W (12.00mm x 11.70mm)
Height - Seated (Max) 0.236" (6.00mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.4000
Other Names 445-3589-6,445-3589-2,VLF12060T2R7N100,445-3589-1
Standard Package 500
Win Source Part Number 993246-VLF12060T-2R7N100
Ultra Librarian 3D Model Ultra Librarian VLF12060T-2R7N100 CAD Model

Description

The VLF12060T-2R7N100 electronic component with the Win Source Part Number 993246-VLF12060T-2R7N100 is a drum core, wirewound inductor that belongs to the VLF series.

  • Package: Tape and Reel
  • Shielded: Yes
  • Inductance: 2.7 µH
  • Tolerance: ±30%
  • Core Material: Ferrite
  • DC Resistance: 6.4 mOhm max
  • Current Rating: 10 A
  • Status: Obsolete
