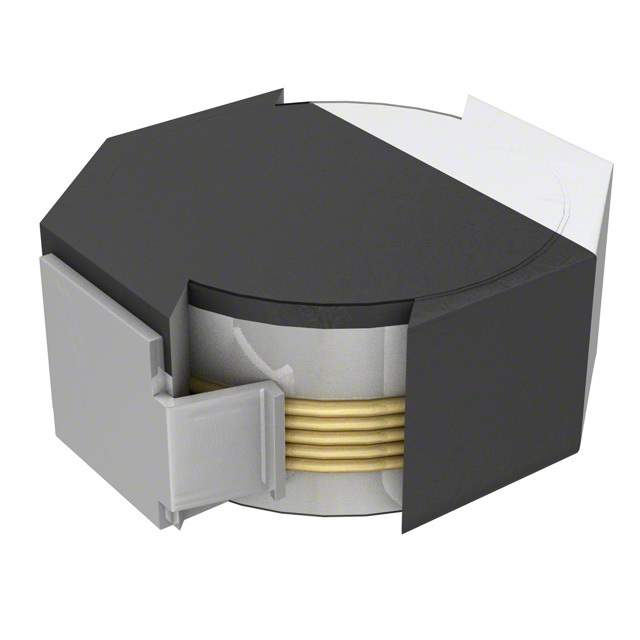

VLF3012AT-470MR22 Real Image
Same model may have multiple batches, images only for reference.

VLF3012AT-470MR22

Part No VLF3012AT-470MR22
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 47UH 220MA 2.2 OHM SMD
Datasheet
VLF3012AT-470MR22 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer TDK Corporation
Packaging Reel - TR
Status Not For New Designs
Type Wirewound
Material - Core Ferrite
Inductance 47μH
Tolerance ±20%
Current Rating 220mA
Current - Saturation 220mA
DC Resistance (DCR) 2.2 Ohm Max
Temperature Range - Operating -40°C to 105°C
Frequency - Test 100kHz
Mounting SMD (SMT)
Height - Seated (Max) 0.047" (1.20mm)
Win Source Part Number 054499-VLF3012AT-470MR22
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian VLF3012AT-470MR22 CAD Model

Description

The TDK Corporation VLF3012AT-470MR22 is a wirewound type inductor with a ferrite core material.

  • Current Rating: 220mA
  • Inductance: 47μH
  • Height: 0.047" (1.20mm)
  • Mounting: SMD (SMT) technology
  • Tolerance: ±20%
  • DC Resistance (DCR): 2.2 Ohm Max
  • Frequency Test: 100kHz
  • Temperature Range: -40°C to 105°C
  • Category: Inductors, Coils, Chokes
  • New Designs: not recommended for new designs
  • Packaging: reel - TR
  • Popularity: medium
  • Supply and Demand: limited
