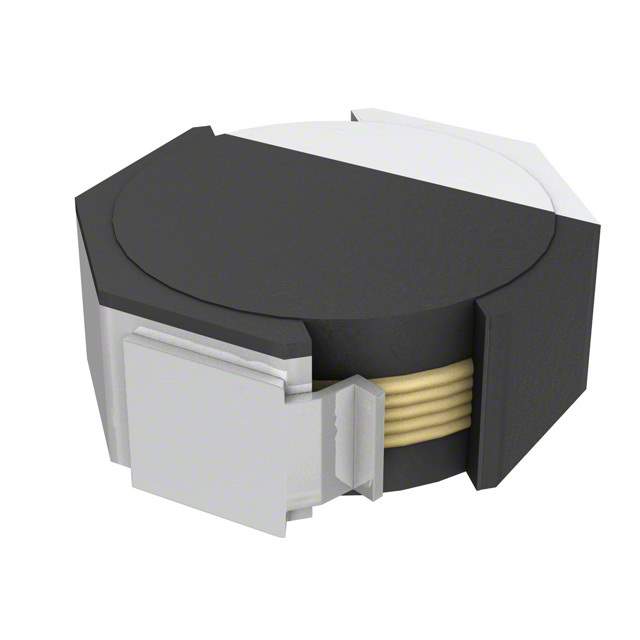

VLF4012AT-220MR51 TDK Corporation VLF4012AT-220MR51 Real Image
Same model may have multiple batches, images only for reference.
VLF4012AT-220MR51 TDK Corporation VLF4012AT-220MR51 Real Image
VLF4012AT-220MR51 TDK Corporation VLF4012AT-220MR51 Real Image
Same model may have multiple batches, images only for reference.

VLF4012AT-220MR51

Part No VLF4012AT-220MR51
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 22UH 510MA 820 MOHM
Datasheet
VLF4012AT-220MR51 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer TDK Corporation
Packaging Reel - TR
Status Not For New Designs
Type Wirewound
Material - Core Ferrite
Inductance 22μH
Tolerance ±20%
Current Rating 510mA
Current - Saturation 520mA
DC Resistance (DCR) 820 mOhm Max
Temperature Range - Operating -40°C to 105°C
Frequency - Test 100kHz
Mounting SMD (SMT)
Height - Seated (Max) 0.047" (1.20mm)
Win Source Part Number 036323-VLF4012AT-220MR51
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian VLF4012AT-220MR51 CAD Model

Description

The TDK Corporation wirewound inductor, with a current rating of 510mA and an inductance of 22μH, is a high-quality electronic component.

  • Current Rating: 510mA
  • Inductance: 22μH
  • Height: 0.047" (1.20mm)
  • Mounting: SMD (SMT) technology
  • Tolerance: ±20%
  • Material: ferrite
  • Saturation Current: 520mA
  • Frequency Test: 100kHz
  • DC Resistance (DCR): 820 mOhm Max
  • Operating Temperature Range: -40°C to 105°C
  • New Designs: not suitable for new designs
