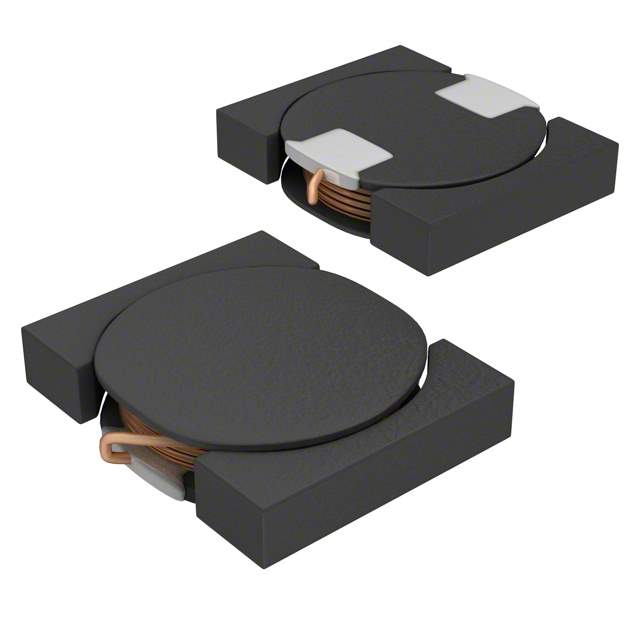

VLF504010MT-1R0N Real Image
Same model may have multiple batches, images only for reference.

VLF504010MT-1R0N

Part No VLF504010MT-1R0N
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 1UH 3.08A 37 MOHM SMD / Inductors for Power Circuits Wound Ferrite
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer TDK Corporation
Packaging Reel
Part Status Obsolete (End Of Life)
Type Wirewound
Material - Core Ferrite
Inductance 1μH
Tolerance ±30%
Current Rating (Amps) 3.08A
Current - Saturation 2.66A
Shielding Shielded
DC Resistance (DCR) 37mOhm Max
Temperature Range - Operating -40°C ~ 105°C
Inductance Frequency - Test 1MHz
Mounting Style SMD
Manufacturer Package Nonstandard
Dimension 0.197" L x 0.157" W (5.00mm x 4.00mm)
Height - Seated (Maximum) 0.039" (1.00mm)
Manufacturer Pack Quantity 1,000
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 806848-VLF504010MT-1R0N
Ultra Librarian 3D Model Ultra Librarian VLF504010MT-1R0N CAD Model

Description

{"ProductId":745429,"FormattedDescription":"

The TDK Corporation produces high-quality electronic components, including the VLF504010MT-1R0N.

  • Type: Wirewound
  • Mounting: Surface Mount
  • Shielded: Yes
  • Inductance: 1µH
  • Tolerance: ±30%
  • Material: Ferrite
  • Maximum DC Resistance: 37mOhm
  • Status: Obsolete
  • Popularity: Medium
  • Supply and Demand Status: Balanced
"}
