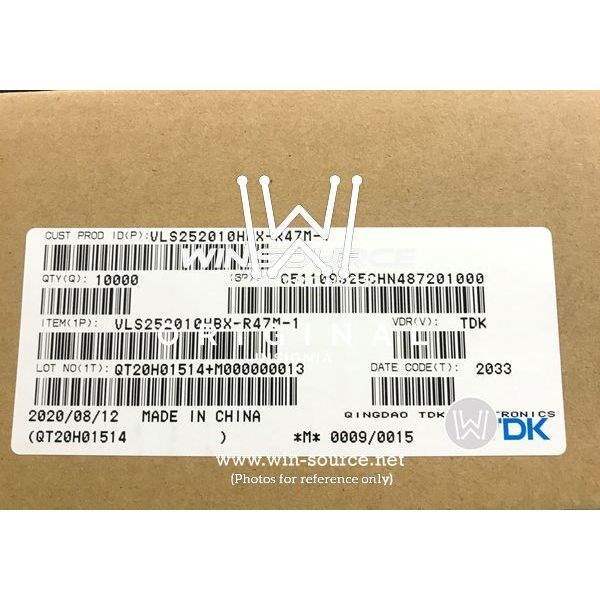

VLS252010HBX-R47M-1 TDK Corporation VLS252010HBX-R47M-1 Real Image VLS252010HBX-R47M-1 label picture 2
Same model may have multiple batches, images only for reference.
VLS252010HBX-R47M-1 TDK Corporation VLS252010HBX-R47M-1 Real Image VLS252010HBX-R47M-1 label picture 2
VLS252010HBX-R47M-1 TDK Corporation VLS252010HBX-R47M-1 Real Image VLS252010HBX-R47M-1 label picture 2
Same model may have multiple batches, images only for reference.

VLS252010HBX-R47M-1

Part No VLS252010HBX-R47M-1
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 470NH 3.32A 35 MOHM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer TDK Corporation
Packaging Reel - TR
Status Active
Type Wirewound
Material - Core Metal
Inductance 470nH
Tolerance ±20%
Current Rating 3.32A
Current - Saturation 4.53A
DC Resistance (DCR) 35 mOhm Max
Temperature Range - Operating -40°C to 105°C
Frequency - Test 1MHz
Mounting SMD (SMT)
Case / Package 1008 (2520 Metric)
Height - Seated (Max) 0.039" (1.00mm)
Win Source Part Number 1117240-VLS252010HBX-R47M-1
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian VLS252010HBX-R47M-1 CAD Model

Description

The TDK Corporation 1117240-VLS252010HBX-R47M-1 is a wirewound type inductor with a current rating of 3.32A and an inductance of 470nH.

  • Height: 0.039" (1.00mm)
  • Tolerance: ±20%
  • Popularity: Medium
  • Supply and demand status: Sufficient
