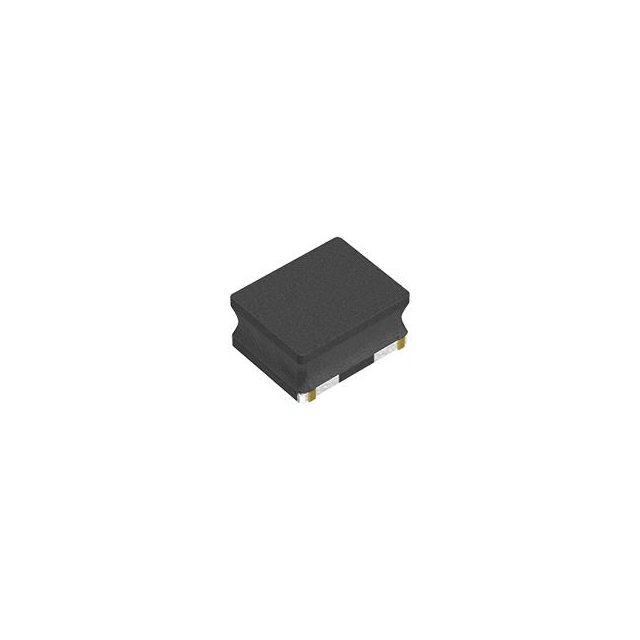

Same model may have multiple batches, images only for reference.

VLS252012CX-1R5M

Name: VLS252012CX-1R5M
Brand: TDK Corporation
SKU: 398567
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	VLS252012CX-1R5M
Manufacturer	TDK Corporation
Catalog	Fixed Inductors
Description	FIXED IND 1.5UH 2.3A 74 MOHM SMD
Datasheet	VLS252012CX-1R5M Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Inductors, Coils, Chokes
Manufacturer	TDK Corporation
Packaging	Reel - TR
Status	Active
Type	Wirewound
Material - Core	Ferrite
Inductance	1.5μH
Tolerance	±20%
Current Rating	2.3A
Current - Saturation	2.19A
DC Resistance (DCR)	74 mOhm Max
Temperature Range - Operating	-40°C to 105°C
Frequency - Test	1MHz
Mounting	SMD (SMT)
Case / Package	2520
Height - Seated (Max)	0.047" (1.20mm)
Win Source Part Number	036366-VLS252012CX-1R5M
Popularity	Medium
Supply and Demand Status	Sufficient
Quantity per package	2k pcs
Ultra Librarian 3D Model	Ultra Librarian VLS252012CX-1R5M CAD Model

Alternative Products

Description

The VLS252012CX-1R5M is a wirewound inductor manufactured by TDK Corporation.

Popularity: Medium
Supply and Demand Status: Sufficient
Performance: high-speed and reliable
Current Rating: 2.3A
Inductance: 1.5μH
