Same model may have multiple batches, images only for reference.

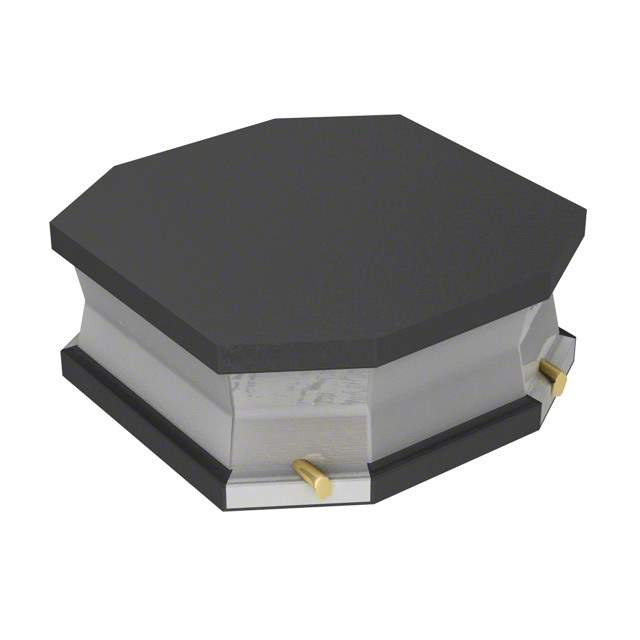

VLS3012ET-100M Real Image
Same model may have multiple batches, images only for reference.

VLS3012ET-100M

Part No VLS3012ET-100M
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 10UH 640MA 336 MOHM
Datasheet
VLS3012ET-100M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer TDK Corporation
Packaging Reel - TR
Status Active
Type Wirewound
Material - Core Ferrite
Inductance 10μH
Tolerance ±20%
Current Rating 640mA
Current - Saturation 640mA
DC Resistance (DCR) 336 mOhm Max
Temperature Range - Operating -40°C to 105°C
Frequency - Test 1MHz
Mounting SMD (SMT)
Height - Seated (Max) 0.047" (1.20mm)
Win Source Part Number 036390-VLS3012ET-100M
Popularity Medium
Supply and Demand Status Balance
Quantity per package 2k pcs
Ultra Librarian 3D Model Ultra Librarian VLS3012ET-100M CAD Model

Description

The TDK Corporation 036390-VLS3012ET-100M wirewound inductor is a surface mount device that is designed for use in inductor, coil, and choke applications.

  • Current Rating: 640mA
  • Inductance: 10μH
  • Tolerance: ±20%
  • Height: 0.047" (1.20mm)
  • DC Resistance: 336 mOhm Max
  • Current Saturation: 640mA
  • Temperature Range: -40°C to 105°C
  • Packaging: reel package
  • Supply and demand: balance
