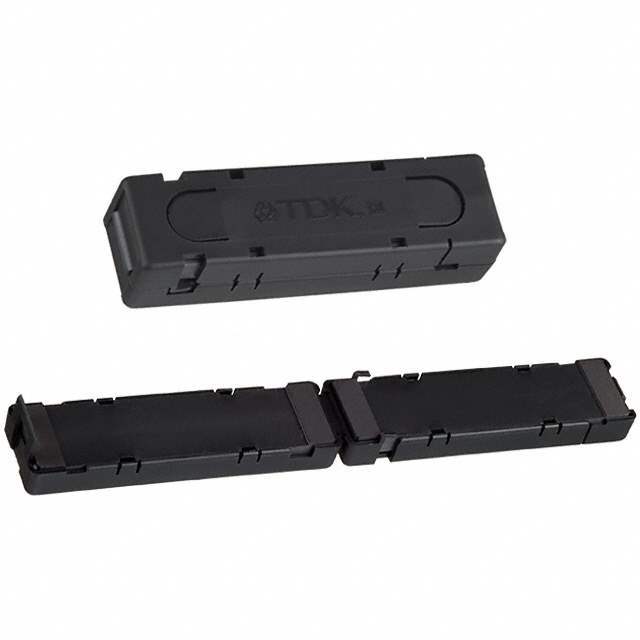

ZCAT6819-5230D
Same model may have multiple batches, images only for reference.

ZCAT6819-5230D

Part No ZCAT6819-5230D
Manufacturer TDK Corporation
Catalog Cable Ferrites
Description FERRITE CORE 35 OHM HINGED
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1206318-ZCAT6819-5230D
Manufacturer TDK Corporation
Category Filters-Cable Ferrites
Series ZCAT
Package Bulk
Product Status Active
Type Flat
Design Hinged (Snap On)
Impedance @ Frequency 35Ohm @ 50MHz ~ 500MHz
Material 30
Inner Dimension 2.047" W x 0.051" H (52.00mm x 1.30mm)
Outer Dimension 2.657" W x 0.629" H (67.50mm x 16.00mm)
Ultra Librarian 3D Model Ultra Librarian ZCAT6819-5230D CAD Model

Description

  • FEATURES
  • Using TDK's unique structure where the ferrite core is mounted and integrated in a plastic case, it is possible to attach them to interface cables and power cables with one touch without having to cut the cables.
  • Have excellent absorption of high-frequency noise using the high-frequency absorption characteristics of the ferrite core.
  • Effective for common mode noise, so can be implemented as a noise countermeasure without influencing signal quality.
  • Series are according to the outer diameter of the cable in order to be compatible with various cable sizes.
