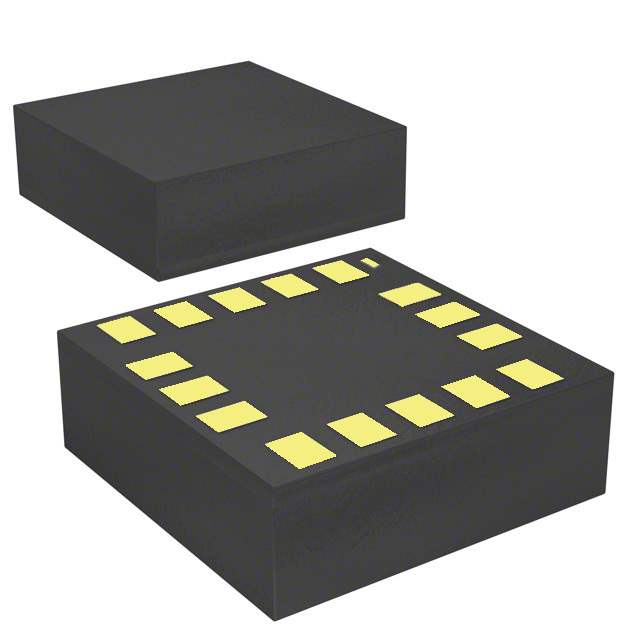

ICM-20601 Real Image ICM-20601 real image23259 ICM-20601 real image23260 ICM-20601 real image23261
Same model may have multiple batches, images only for reference.
ICM-20601 Real Image ICM-20601 real image23259 ICM-20601 real image23260 ICM-20601 real image23261
ICM-20601 Real Image ICM-20601 real image23259 ICM-20601 real image23260 ICM-20601 real image23261
Same model may have multiple batches, images only for reference.

ICM-20601

Part No ICM-20601
Manufacturer TDK InvenSense
Catalog Motion Sensors - IMU (Inertial Measurement Units)
Description IMU ACCEL/GYRO/TEMP I2C/SPI LGA / Accelerometer, Gyroscope, Temperature, 6 Axis Sensor I2C, SPI Output
Datasheet
ICM-20601 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers - Motion Sensors - IMUs (Inertial Measurement Units)
Mfr TDK InvenSense
Package Tape & Reel
Product Status Obsolete
Sensor Type Accelerometer, Gyroscope, Temperature, 6 Axis
Output Type I2C, SPI
Temperature Range - Operating -40°C ~ 85°C (TA)
Package / Case 16-WFLGA Module
Supplier Device Package 16-LGA (3x3)
Mounting Type Surface Mount
Standard Package 5,000 pcs
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN 7A994
HTSUS 8542.39.0001
Win Source Part Number 825422-ICM-20601
Ultra Librarian 3D Model Ultra Librarian ICM-20601 CAD Model

Description

The ICM-20601 is a motion sensor module that combines a 3-axis accelerometer, a 3-axis gyroscope, and a temperature sensor.

  • Interfaces: I2C, SPI
  • Package: Surface Mount
  • Operating Temperature: -40°C to 85°C
  • Manufacturer: TDK InvenSense
  • Status: Obsolete
