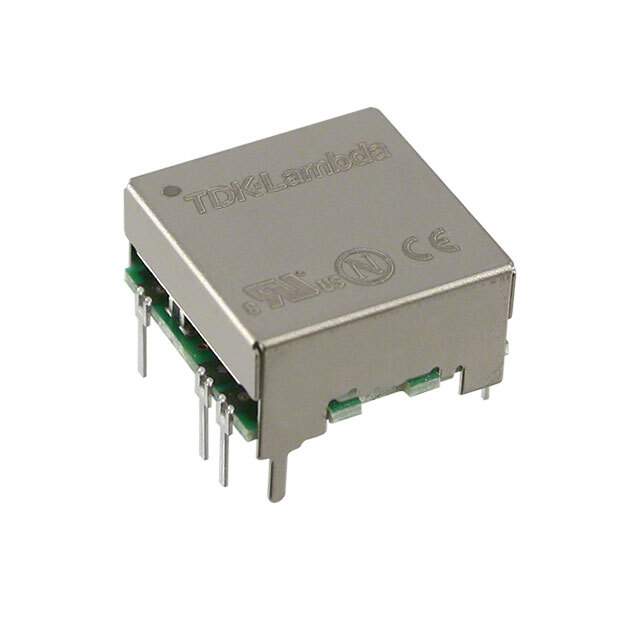

CC1R5-1212DF-E Real Image
Same model may have multiple batches, images only for reference.

CC1R5-1212DF-E

Part No CC1R5-1212DF-E
Manufacturer TDK-Lambda Americas Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CNVRTR +/-12V TO +/-15V 1W  /  Isolated Module DC DC Converter 2 Output 12 ~ 15V -12 ~ -15V 60mA, 60mA 9V - 18V Input
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Mfr TDK-Lambda Americas Inc
Series CC-E (1.5W)
Package Tray
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 9V
Voltage - Input (Max) 18V
Voltage - Output 1 12 ~ 15V
Voltage - Output 2 -12 ~ -15V
Current - Output (Max) 60mA, 60mA
Power (Watts) 1 W
Voltage - Isolation 500 V
Applications ITE (Commercial)
Temperature Range - Operating -40°C ~ 85°C
Mounting Type Through Hole
Package / Case 7-DIP Module
Dimension 0.65" L x 0.65" W x 0.34" H (16.5mm x 16.6mm x 8.5mm)
Control Features Enable, Active Low
Base Product Number CC1R5
MSL Level Not Applicable
ECCN EAR99
HTSUS 8504.40.9580
Other Names CC1R51212DFE,445-2454
Standard Package 10
Win Source Part Number 1006533-CC1R5-1212DF-E
Ultra Librarian 3D Model Ultra Librarian CC1R5-1212DF-E CAD Model

Description

The CC1R5-1212DF-E is a power supply board mount DC-DC converter manufactured by TDK-Lambda Americas Inc.

  • Series: CC-E (1.5W) series
  • Power: 1W
  • Package: 10
  • Type: isolated module type
  • Outputs: two outputs
  • Maximum Output Current: 60mA, 60mA
  • Input Voltage Range: 9V to 18V
  • Output Voltage Range: 12~15V to -12~-15V
