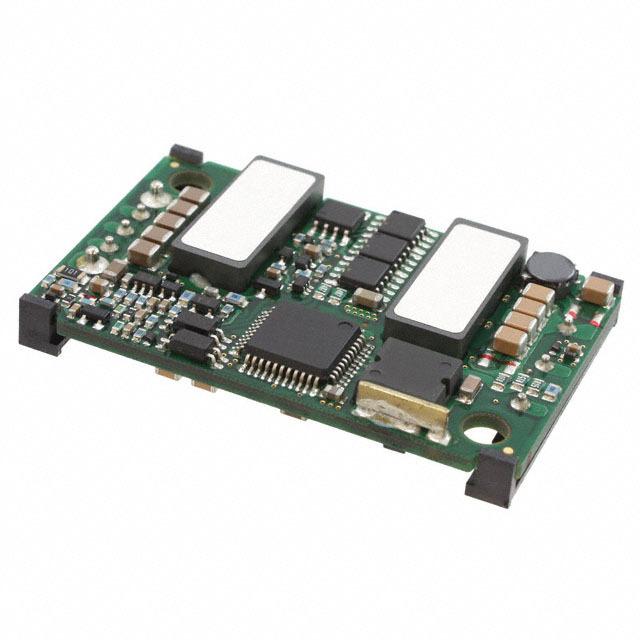

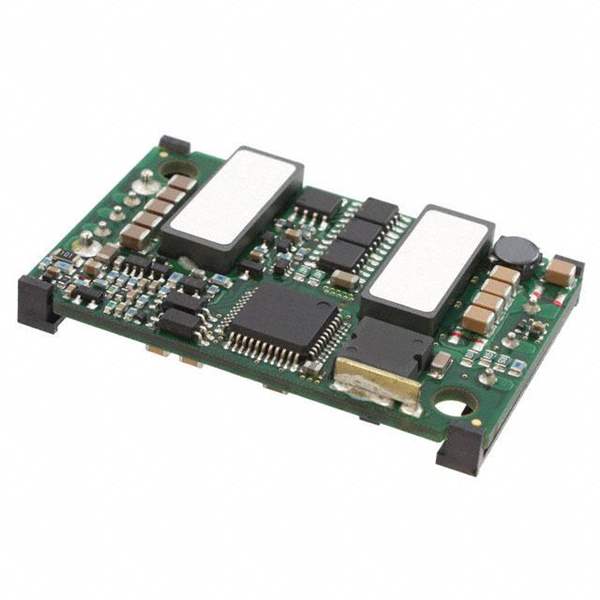

Same model may have multiple batches, images only for reference.

PAQ50S481R8

Name: PAQ50S481R8
Brand: TDK-Lambda Americas Inc.
SKU: 268078
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	PAQ50S481R8
Manufacturer	TDK-Lambda Americas Inc.
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC/DC CONVERTER 1.8V 22W
Datasheet	PAQ50S481R8 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount
Family	DC DC Converters
Manufacturer	TDK-Lambda Americas Inc.
Series	PAQ50
Packaging	Bulk
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	36V
Voltage - Input (Max)	76V
Voltage - Output 1	1.8V
Current - Output (Max)	12A
Power (Watts) - Manufacture Series	22W
Voltage - Isolation	1.5kV (1500V)
Applications	ITE (Commercial)
Features	Remote On/Off, OCP, OVP
Mounting Style	Through Hole
Package	8-DIP Module, 1/4 Brick
Size / Dimension	2.28" L x 1.45" W x 0.33" H (57.9mm x 36.8mm x 8.3mm)
Operating Temperature Range	-40°C ~ 85°C
Efficiency	83%
Power (Watts) - Max	22W
Win Source Part Number	141477-PAQ50S481R8
Popularity	Medium
Supply and Demand Status	Limited
Ultra Librarian 3D Model	Ultra Librarian PAQ50S481R8 CAD Model

Alternative Products

Description

The TDK-Lambda Americas Inc. PAQ50S481R8 is an isolated module DC-DC converter with a 1/4 brick package type.

Manufacturer: TDK-Lambda Americas Inc.
Voltage Input Range: 36V to 76V
Voltage Output: 1.8V
Maximum Current Output: 12A
Power Output: 22W
Applications: ITE (Commercial)
Features: remote On/Off, OCP, and OVP
Package Size: 2.28" L x 1.45" W x 0.33" H (57.9mm x 36.8mm x 8.3mm)
Mounting: through hole
Voltage Isolation: 1.5kV (1500V)
Efficiency: 83%
