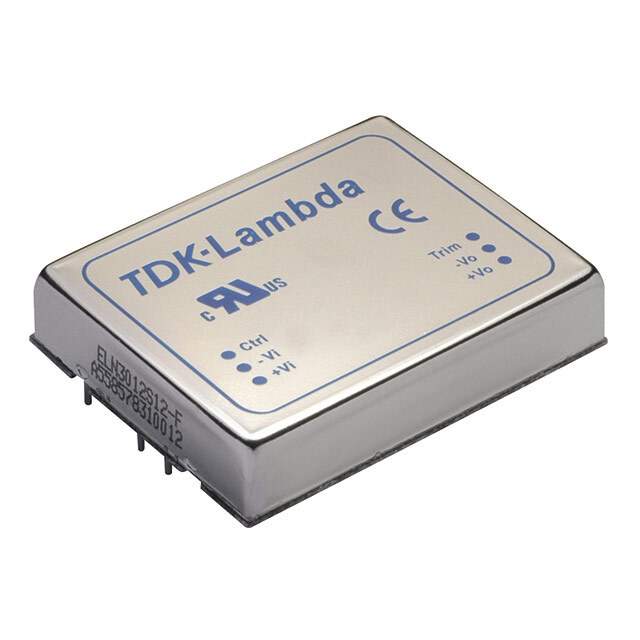

PXE3024S05 Real Image
Same model may have multiple batches, images only for reference.

PXE3024S05

Part No PXE3024S05
Manufacturer TDK-Lambda Americas Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC-DC CONVERTERS 5V 30W 6.0A / Module DC-DC 24VIN 1-OUT 5V 6A 30W 6-Pin
Datasheet
PXE3024S05 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Power Supplies - Board Mount
Manufacturer TDK-Lambda Americas Inc.
Series PXE
Packaging Bulk
Type Isolated Module
Number of Outputs 1
Input Voltage MIN 18V
Voltage Input MAX 36V
Voltage - Output 1 5V
Current - Output (Maximum) 6A
Power (Watts) 30W
Voltage - Isolation 1.6kV (1600V)
Applications ITE (Commercial)
Features Remote On/Off, OCP, OVP, SCP
Operating Temperature Range -40°C ~ 100°C
Efficiency 88%
Mounting Style Through Hole
Package 8-DIP Module, 6 Leads
Dimension 2.00" L x 1.60" W x 0.40" H (50.8mm x 40.6mm x 8.6mm)
Win Source Part Number 792759-PXE3024S05
Popularity Medium
Supply and Demand Status Limited
Family Name PXE30-24S05
Introduction Date January 18, 2006
ECCN EAR99
Country of Origin China
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian PXE3024S05 CAD Model

Description

The TDK-Lambda Americas Inc. PXE3024S05 is a medium-popularity electronic component.

  • Type: Isolated Module
  • Mounting Style: Through-hole
  • Features: Remote On/Off, OCP, OVP, SCP
  • Package: 8-DIP module, 6 leads
  • Application: ITE (Commercial)
  • Power: 30W
  • Voltage-Isolation: 1.6kV (1600V)
  • Outputs: 1
  • Voltage-Output 1: 5V
  • Efficiency: 88%
  • Family Name: PXE30-24S05
  • Win Source Part Number: 792759-PXE3024S05
