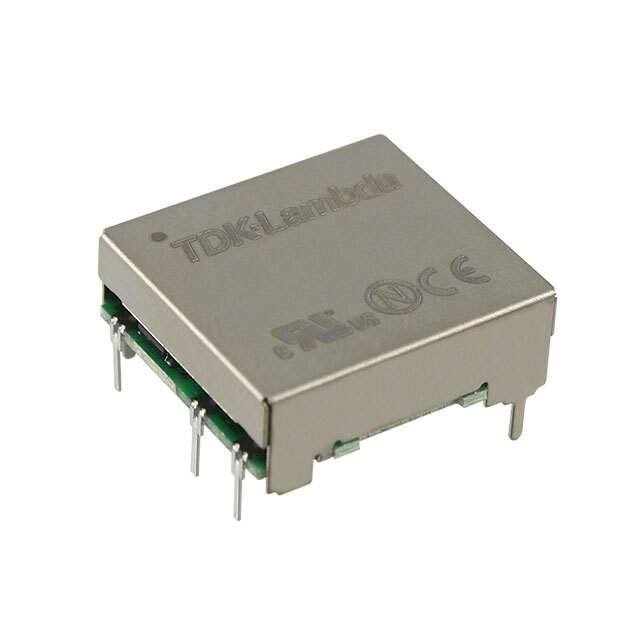

Same model may have multiple batches, images only for reference.

CC6-2405SF-E

Name: CC6-2405SF-E
Brand: TDK-Lambda Americas Inc.
SKU: 1338947
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	CC6-2405SF-E
Manufacturer	TDK-Lambda Americas Inc.
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 5V 6W / Isolated Module DC DC Converter 1 Output 5V 1.2A 18V - 36V Input
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount - DC DC Converters
Mfr	TDK-Lambda Americas Inc
Series	CC-E (6W)
Package	Tray
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	18V
Voltage - Input (Max)	36V
Voltage - Output 1	5V
Current - Output (Max)	1.2A
Power (Watts)	6 W
Voltage - Isolation	500 V
Applications	ITE (Commercial)
Temperature Range - Operating	-40°C ~ 85°C
Mounting Type	Through Hole
Package / Case	7-DIP Module
Size / Dimension	0.90" L x 0.83" W x 0.34" H (22.9mm x 21.1mm x 8.5mm)
Control Features	Enable, Active Low
Base Product Number	CC6-2405
Standard Package	10
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
California Prop 65	Warning Information
Win Source Part Number	1338947-CC6-2405SF-E
Ultra Librarian 3D Model	Ultra Librarian CC6-2405SF-E CAD Model

Alternative Products

Description

This isolated module is a CC-E (6W) type with a size/dimension of 0.90 inches L x 0.83 inches W x 0.34 inches H (22.9mm x 21.1mm x 8.5mm).

Mfr: TDK-Lambda Americas Inc.
Type: CC-E (6W) Isolated Module
Size/Dimension: 0.90 inches L x 0.83 inches W x 0.34 inches H (22.9mm x 21.1mm x 8.5mm)
Voltage Isolation: 500V
Current Output: 1.2A
Number of Outputs: 1
Voltage Input: Minimum 18V, Maximum 36V
Voltage Output: 5V
ECCN: EAR99
REACH Status: Unaffected
MSL Level: Not Applicable
HTSUS: 8504.40.9580
